5530217964 EVA-R-DWI/DALI/ZWART
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | 5530217964 EVA-R-DWI/DALI/ZWART |
| Brand | ABB |
| Harmonized System Code | 9405 6180 00 |
| ETIM | EC001957 |
| Width | 283 mm |
| Length | 255 mm |
| Height/depth | 76 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK04 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP65 |
| Colour temperature | 5700 K |
| Max. system power | 3 W |
| Rated luminous flux according to IEC 62722-2-1 | 500 lm |
Packing details
| Packing level 1 | 8713812772707 |
Other Technical data
| Mounting method | Wall surface mounted |
| Protection class | II |
| Function | Escape route lighting |
| Lamp holder | None |
| Conductor cross section | 1.5 mm² |
| Connection type | Screw connection |
| Colour housing | White |
| Voltage type | AC |
| Power supply system | Peripheral (individual battery) |
| Type of control gear | LED operating device current-controlled |
| With remote control | Yes |
| Number of poles | 4 |
| Housing material | Plastic |
| Number of lighting heads | 0 |
| Material cover | Other |
| Battery quality | Lithium-ions |
| With light source | No |
| Suitable for number of lamps | 2 |
| With remote switch connection | No |
| Monitoring equipment | Safety module for monitoring (central feeded system) |
| Constant light output (CLO) | Yes |
| With pictogram | No |
| Type of wiring | Suitable for through wiring |
| Luminous flux in standby mode | 500 lm |
| Light distributor | Focal lens |
| Nominal operation time | 3 h |
| Exchangeable control gear | Yes |
| Power factor | 0.6 |
Downloads
Description

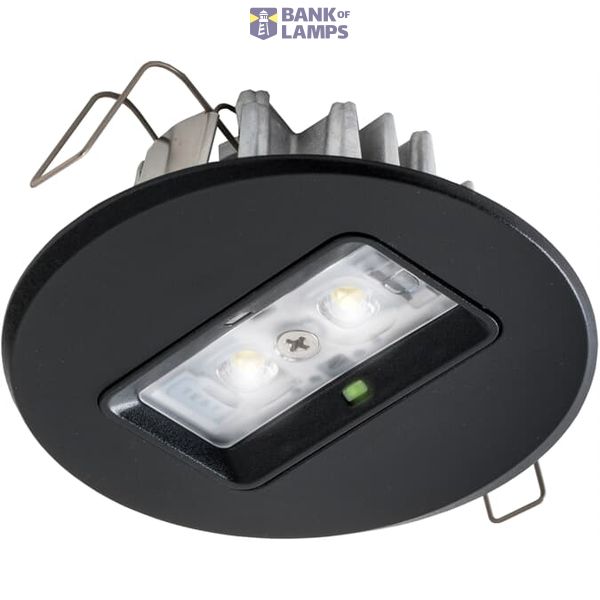

Self-contained 2 watt, round black main-tained recess led luminaire, including DALI control module, series Evago. Light distribution: wide (W), RAL9011
