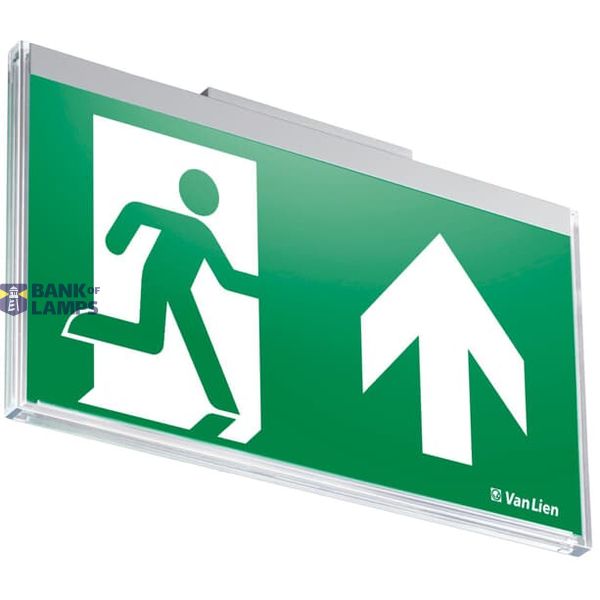

5520257064/13 EVA-R-CWI
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | 5520257064/13 EVA-R-CWI |
| Brand | ABB |
| ETIM | EC001957 |
| Width | 58 mm |
| Length | 335 mm |
| Height/depth | 189 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP40 |
| Colour temperature | 5000 K |
Packing details
| Packing level 1 | 8713812763224 |
Other Technical data
| Mounting method | Wall surface mounted |
| Protection class | None |
| Function | Escape route signage |
| Lamp holder | None |
| Connection type | Screw connection |
| Colour housing | Aluminium |
| Voltage type | AC/DC |
| Power supply system | Central (central battery) |
| Type of control gear | LED operating device current-controlled |
| Suitable for labelling type | Insert sheet/plate |
| Type of indicator | Single-sided |
| Number of poles | 4 |
| Housing material | Aluminium |
| Wiring system | Continuous circuit/emergency circuit |
| Number of lighting heads | 1 |
| Material cover | Plastic, transparent |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With remote switch connection | No |
| Monitoring equipment | None |
| Recognition distance | 32 m |
| With pictogram | Yes |
| Type of wiring | Suitable for through wiring |
| Rated ambient temperature according to IEC62722-2-1 | 0-35 °C |
| Light distributor | None |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
Downloads
Description
EVA-COW-32
