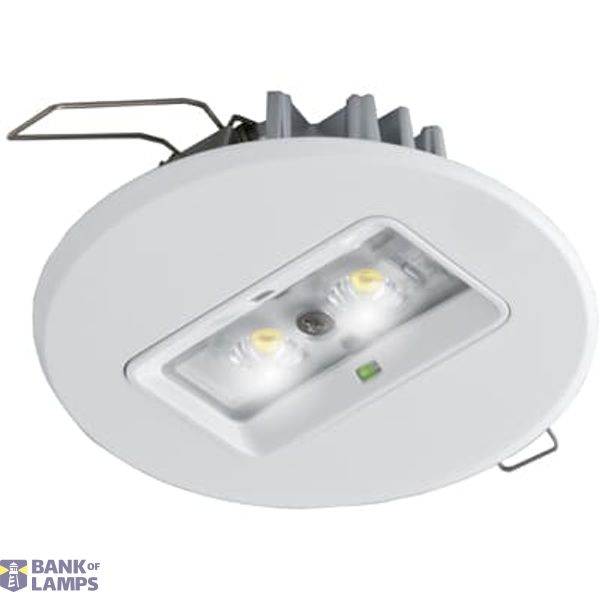

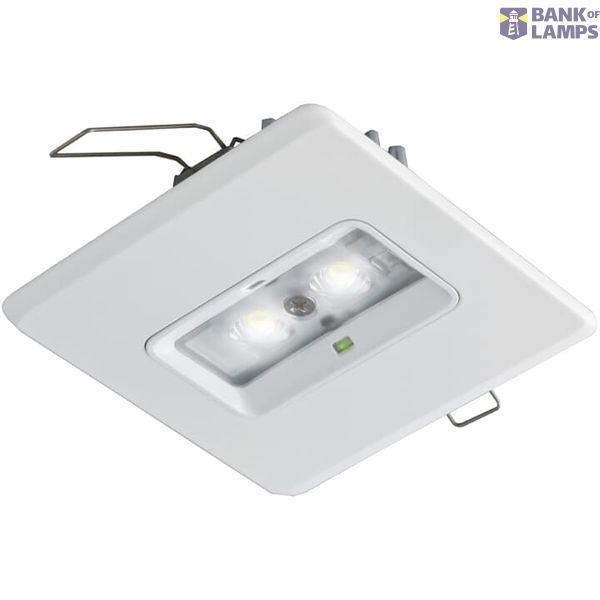

5520227079 EVA-V-DWI-X/LB400

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name 5520227079 EVA-V-DWI-X/LB400
Brand ABB
ETIM EC001957
Width 100 mm
Length 316 mm
Height/depth 78 mm
Lamp type LED not exchangeable
Degree of protection (IP) IP42
Rated luminous flux according to IEC 62722-2-1 238 lm

Packing details

Packing level 1 8713812771588

Other Technical data

Mounting method Built-in
Protection class None
Outer diameter 100 mm
Function Escape route lighting
Lamp holder None
Connection type Screw connection
Colour housing White
Voltage type AC
Power supply system Peripheral (individual battery)
With remote control No
Built-in width 68 mm
Number of poles 3
Housing material Plastic
Wiring system Continuous circuit/emergency circuit
Number of lighting heads 1
Built-in length 316 mm
Material cover Plastic, transparent
Battery quality NiMH
With light source Yes
Suitable for number of lamps 1
With remote switch connection No
Monitoring equipment Automatic self test
Type of wiring Ending
Light distributor Focal lens
Exchangeable control gear Yes
Built-in height/depth 35 mm

Downloads

Description

EVA-R-DWI-X/LB400
