5510227071 EVA-V-DLI/LB400/ALU
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | 5510227071 EVA-V-DLI/LB400/ALU |
| Brand | ABB |
| ETIM | EC001957 |
| Width | 150 mm |
| Length | 150 mm |
| Height/depth | 35 mm |
| Lamp type | LED not exchangeable |
| Degree of protection (IP) | IP54 |
| Rated luminous flux according to IEC 62722-2-1 | 203 lm |
Packing details
| Packing level 1 | 8713812771601 |
Other Technical data
| Mounting method | Ceiling surface mounting |
| Protection class | None |
| Function | Escape route lighting |
| Lamp holder | None |
| Connection type | Other |
| Colour housing | Aluminium |
| Voltage type | AC |
| Power supply system | Peripheral (individual battery) |
| With remote control | No |
| Number of poles | 4 |
| Housing material | Aluminium |
| Wiring system | Continuous circuit/emergency circuit |
| Number of lighting heads | 1 |
| Material cover | Plastic, transparent |
| Battery quality | NiMH |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With remote switch connection | No |
| Monitoring equipment | Automatic self test |
| Type of wiring | Suitable for through wiring |
| Light distributor | Focal lens |
| Exchangeable control gear | Yes |
Downloads
Description

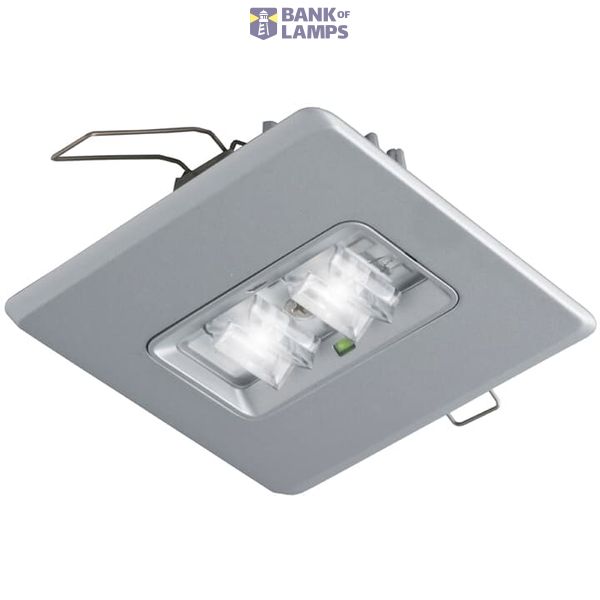

Self-contained 2 watt square alu main-tained recess led luminaire + automatic self test LB400 series Evago Light distribution long (L) RAL9006
