511013421BT EL800R-M3/BT ER VL
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | 511013421BT EL800R-M3/BT ER VL |
| Brand | ABB |
| ETIM | EC001957 |
| Width | 100 mm |
| Length | 340 mm |
| Height/depth | 50 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 230 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 5000 K |
| Max. system power | 3.12 W |
| Rated luminous flux according to IEC 62722-2-1 | 117 lm |
Packing details
| Packing level 1 | 8713812773735 |
Other Technical data
| Mounting method | Built-in |
| Protection class | II |
| Outer diameter | 100 mm |
| Function | Escape route lighting |
| Conductor cross section | 2.5 mm² |
| Connection type | Other |
| Colour housing | White |
| Voltage type | DC |
| Power supply system | Central (central battery) |
| Type of control gear | LED operating device current-controlled |
| With remote control | Yes |
| Built-in width | 240 mm |
| Number of poles | 8 |
| Housing material | Plastic |
| Wiring system | Continuous circuit/emergency circuit |
| Number of lighting heads | 1 |
| Built-in length | 48 mm |
| Material cover | Plastic, transparent |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With remote switch connection | No |
| Monitoring equipment | Safety module for monitoring (central feeded system) |
| Constant light output (CLO) | No |
| With pictogram | No |
| Type of wiring | Suitable for through wiring |
| Rated ambient temperature according to IEC62722-2-1 | 0-40 °C |
| Light distributor | Focal lens |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Exchangeable control gear | Yes |
| Built-in height/depth | 50 mm |
| Power factor | 0.9 |
Downloads
Description

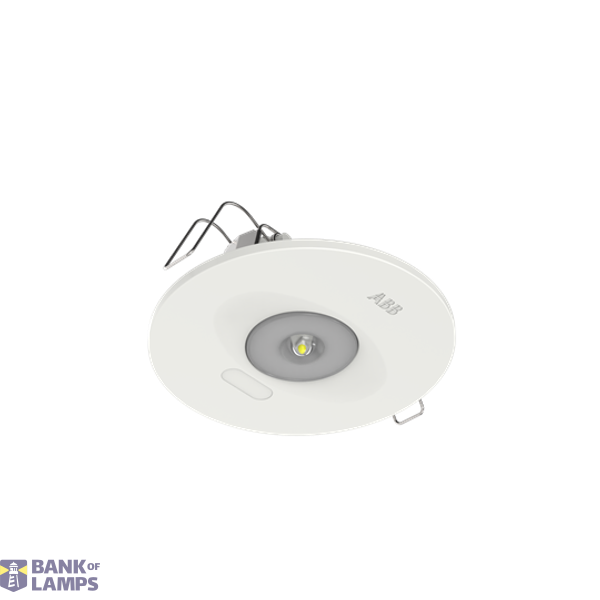

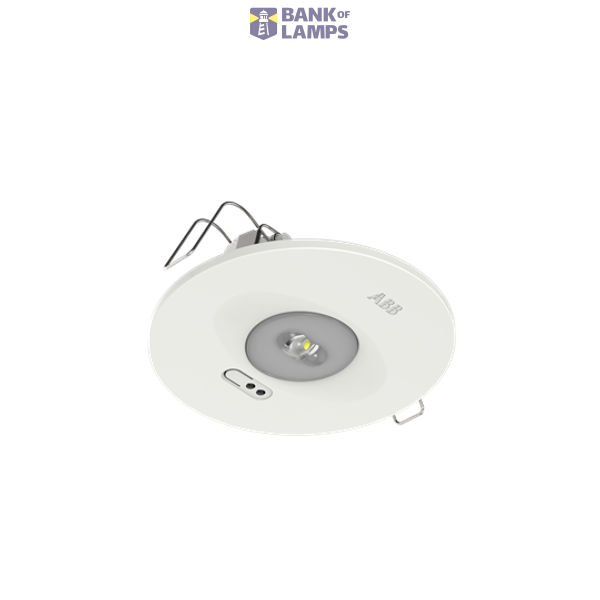

Movion escape route lighting, recessed, 3 hr, slave 230V FLX control module open area optic
