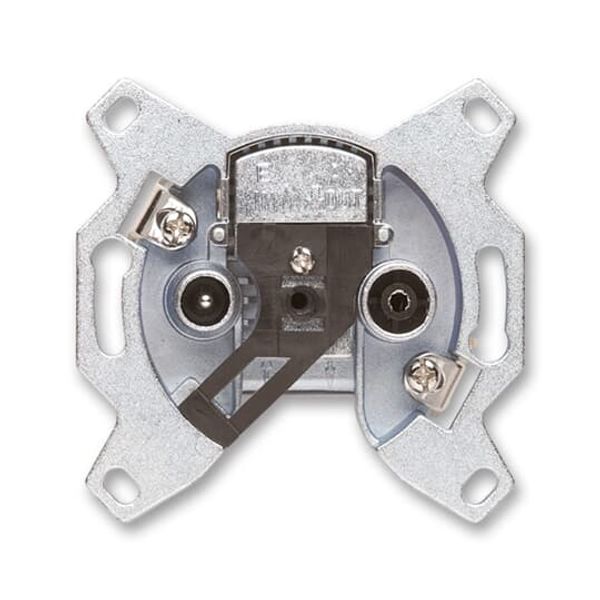

5011-A3503 Flush Mounted Inserts End socket aluminium
Order only
Price (excl. VAT):
8,16 €
EAN: 8595025313164
MPN: 5011-A3503
Box: 1
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | 5011-A3503 Flush Mounted Inserts End socket aluminium |
| Brand | Busch-Jaeger |
| Categories |
TV Sockets
|
| Harmonized System Code | 8536 6910 00 |
| ETIM | EC000439 |
| Mounting method | Flush mounted (plaster) |
| Colour | Aluminium |
| Model | End socket |
| Halogen free | TRUE |
| Cover | None |
| Surface protection | Metallic |
| Frequency | 4-862 MHz |
| Number of outlets | 2 |
| Through loss at 860 MHz | 0 dB |
| Tap loss at 860 MHz | 4 dB |
| Material quality | Aluminium |
| Suitable for cable modem | FALSE |
| Suitable for remote power supply | FALSE |
| Material | Metal |
| Type of fastening | Mounting with claw and screw |
| Tap loss at 2150 MHz | 0 dB |
| Through loss at 2150 MHz | 0 dB |
| RAL-number (similar) | 0 |
| Degree of protection (IP) | IP20 |
| Device width | 71 mm |
| Device height | 71 mm |
| Device depth | 23,5 mm |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 40 mm |
| Anti-bacterial treatment | FALSE |
Packing details
| Packing level 1 | 8595025313164 |
Downloads
Description
Přístroj zásuvky TV+R, koncový (typ EU 3503); EU 3503
