4MX850 491 LED80S/840 PSD WB WH
In stock: No
Vendor stock: Yes
Minimal order quantity: 1
Discontinued
Price (excl. VAT):
Price by request
Split box: 10,00 €
EAN: 4030732672820
MPN: 4030732672820
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | 4MX850 491 LED80S/840 PSD WB WH |
| Brand | PHILIPS |
| Categories |
Accessories for track lights
|
| Country of origin | NL |
| Harmonized System Code | 9405 1190 00 |

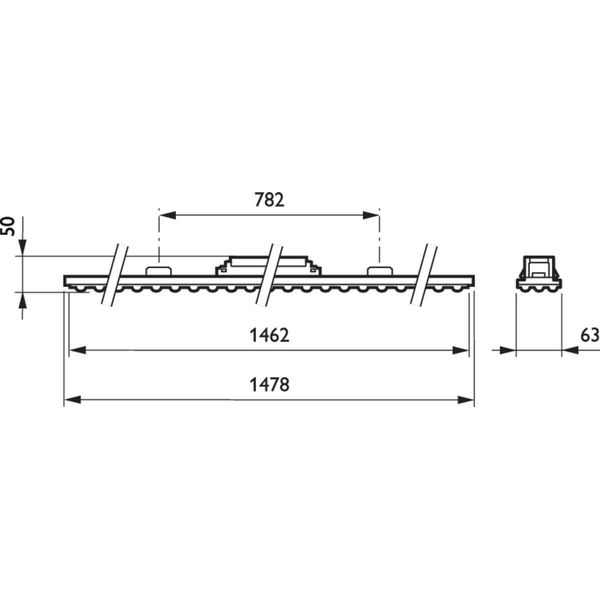

| Width | 63 mm |
| Colour rendering index CRI | 80-89 |
| Length | 1478 mm |
| Height/depth | 50 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Wide beam 41-80° |
| Colour temperature | 4000 K |
| Max. system power | 58.3 W |
| Rated luminous flux according to IEC 62722-2-1 | 8000 lm |
| Luminaire efficacy | 137 lm/W |
Packing details
| Packing level 1 | 4030732672820 |
Other Technical data
| Protection class | I |
| Reflector | None |
| Lamp holder | Other |
| Conductor cross section | 0.5 mm² |
| Connection type | Other |
| Colour housing | White |
| Voltage type | AC/DC |
| Type of control gear | LED operating device current-controlled |
| Number of poles | 5 |
| Housing material | Steel |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Emergency power supply integrated | No |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Nominal current | 0-500 mA |
| Colour of light | White |
| Constant light output (CLO) | Yes |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 70000 h |
| Rated life time L80/B10 at 25 °C | 0 h |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Light distributor | Diffuser lens/optic/panel |
| Dimming DSI | No |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 80 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 20 % |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Power factor | 0.9 |
Downloads
Description
Customers in the industrial and retail sectors are looking for general lighting solutions with a justifiable payback, while meeting all relevant norms for supermarkets and industry applications. For a limited investment, Maxos LED Industry offers best-in-class energy savings while delivering high lux levels at the required color temperatures and glare factors. The minimalistic Maxos LED Industry system comprises exchangeable mid-power LED boards mounted on a standard Maxos trunking rail. A choice of wide and medium-beam lenses means flexibility in light distribution. Compared with a conventional fluorescent installation, this highly efficient LED solution offers full payback in less than three years. And the benefits keep coming: the use of our upgradable LED engine platform makes Maxos LED Industry a truly future-proof solution.
