4510286062/50 XT3300R-M8/ST 22M ALU
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
341,71 €
EAN: 5415022514643
MPN: 7TCA309010R0043
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | 4510286062/50 XT3300R-M8/ST 22M ALU |
| Brand | ABB |
| Categories |
Emergency luminaires
|
| Harmonized System Code | 9405 6180 00 |
| Width | 143 mm |
| Length | 235 mm |
| Height/depth | 182 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP40 |
| Colour temperature | 5000 K |
Packing details
| Packing level 1 | 5415022514643 |
Other Technical data
| Mounting method | Built-in |
| Protection class | II |
| Outer diameter | 92 mm |
| Function | Escape route signage |
| Lamp holder | Other |
| Conductor cross section | 2.5 mm² |
| Connection type | Screw connection |
| Colour housing | Aluminium |
| Voltage type | AC |
| Power supply system | Peripheral (individual battery) |
| Type of control gear | LED operating device current-controlled |
| With remote control | No |
| Built-in width | 68 mm |
| Built-in diameter | 68 mm |
| Suitable for labelling type | Acrylic plate |
| Type of indicator | Single/double-sided |
| Number of poles | 3 |
| Housing material | Plastic |
| Wiring system | Continuous circuit/emergency circuit |
| Number of lighting heads | 1 |
| Built-in length | 300 mm |
| Material cover | Plastic, transparent |
| Battery quality | NiMH |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
| Suitable for number of lamps | 1 |
| With remote switch connection | No |
| Monitoring equipment | Automatic self test |
| Recognition distance | 22 m |
| Constant light output (CLO) | No |
| With pictogram | Yes |
| Type of wiring | Ending |
| Rated ambient temperature according to IEC62722-2-1 | 5-35 °C |
| Light distributor | Other |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Nominal operation time | 8 h |
| Exchangeable control gear | Yes |
| Built-in height/depth | 48 mm |
| Power factor | 0.9 |
Downloads
Description

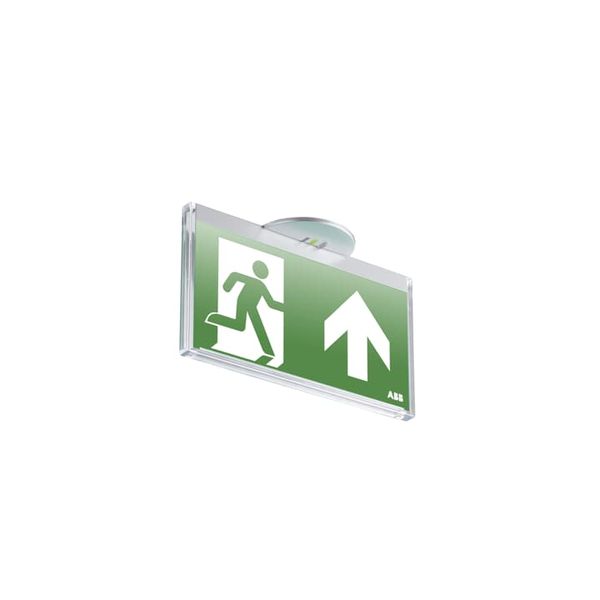

Guideway 3300 exit sign recessed wall or ceiling 8hr 22m Self Test, including pictograms
