4510236952/50 XT3300S-M3/DALI 22M ALU
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
327,60 €
EAN: 5415022514599
MPN: 7TCA305020R0032
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | 4510236952/50 XT3300S-M3/DALI 22M ALU |
| Brand | ABB |
| Categories |
Emergency luminaires
|
| Harmonized System Code | 9405 6180 00 |
| Width | 172 mm |
| Length | 235 mm |
| Height/depth | 66 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP40 |
| Colour temperature | 5000 K |
Packing details
| Packing level 1 | 5415022514599 |
Other Technical data
| Mounting method | Wall surface mounted / ceiling surface mounting |
| Protection class | II |
| Function | Escape route signage |
| Lamp holder | Other |
| Conductor cross section | 2.5 mm² |
| Connection type | Screw connection |
| Colour housing | Aluminium |
| Voltage type | AC |
| Power supply system | Peripheral (individual battery) |
| Type of control gear | LED operating device current-controlled |
| With remote control | No |
| Suitable for labelling type | Acrylic plate |
| Type of indicator | Single/double-sided |
| Number of poles | 8 |
| Housing material | Aluminium |
| Wiring system | Continuous circuit/emergency circuit |
| Number of lighting heads | 1 |
| Material cover | Plastic, transparent |
| Battery quality | NiMH |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
| Suitable for number of lamps | 1 |
| With remote switch connection | No |
| Monitoring equipment | Safety module for monitoring (central feeded system) |
| Recognition distance | 22 m |
| Constant light output (CLO) | No |
| With pictogram | Yes |
| Type of wiring | Suitable for through wiring |
| Rated ambient temperature according to IEC62722-2-1 | 5-35 °C |
| Light distributor | Other |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Nominal operation time | 3 h |
| Exchangeable control gear | Yes |
| Power factor | 0.9 |
Description

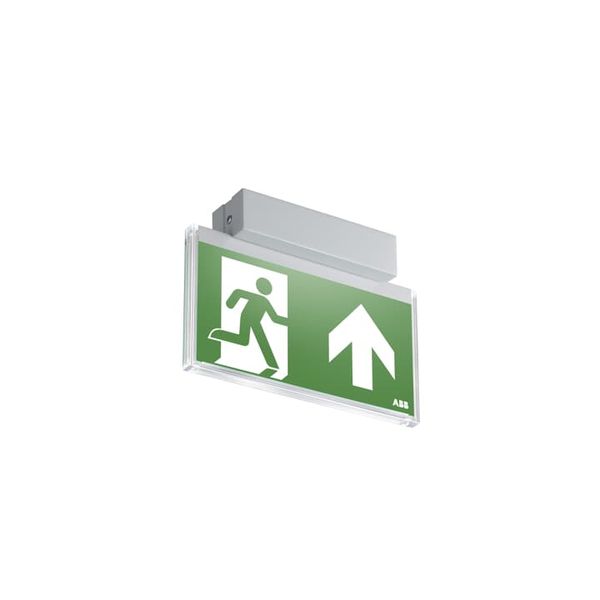

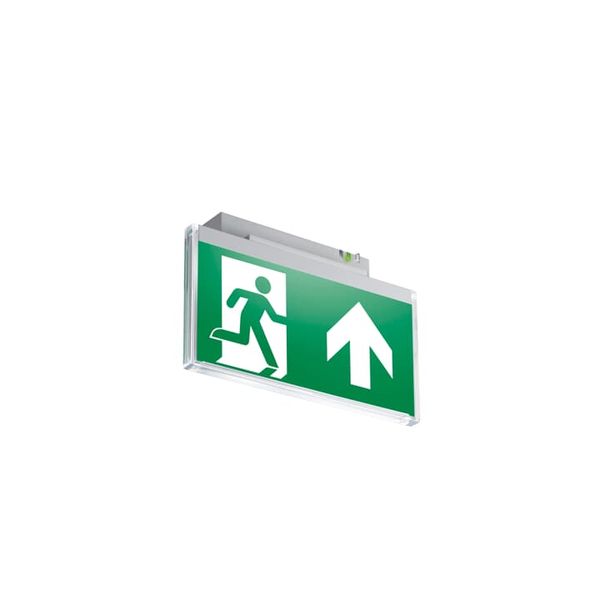

Guideway 3300 exit sign surface wall or ceiling mounted 3hr 22m DALI, including pictograms
