411113511 XTH800S-M3/LB400 22M VL
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | 411113511 XTH800S-M3/LB400 22M VL |
| Brand | ABB |
| ETIM | EC001957 |
| Width | 260 mm |
| Length | 202 mm |
| Height/depth | 47 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK04 |
| Nominal voltage | 230 V |
| Degree of protection (IP) | IP42 |
| Colour temperature | 5000 K |
| Max. system power | 4.89 W |
| Rated luminous flux according to IEC 62722-2-1 | 76.6 lm |
Packing details
| Packing level 1 | 8713812773223 |
Other Technical data
| Mounting method | Wall surface mounted / ceiling surface mounting |
| Protection class | II |
| Function | Escape route lighting/signage |
| Conductor cross section | 2.5 mm² |
| Connection type | Other |
| Colour housing | White |
| Voltage type | AC |
| Power supply system | Peripheral (individual battery) |
| Type of control gear | LED operating device current-controlled |
| With remote control | No |
| Suitable for labelling type | Other |
| Type of indicator | Single/double-sided |
| Number of poles | 4 |
| Housing material | Plastic |
| Wiring system | Continuous circuit/emergency circuit |
| Number of lighting heads | 2 |
| Material cover | Plastic, transparent |
| Battery quality | NiMH |
| With light source | Yes |
| Suitable for number of lamps | 2 |
| With remote switch connection | No |
| Monitoring equipment | Test button |
| Recognition distance | 22 m |
| Constant light output (CLO) | No |
| With pictogram | Yes |
| Type of wiring | Suitable for through wiring |
| Rated ambient temperature according to IEC62722-2-1 | 5-35 °C |
| Light distributor | Focal lens |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Nominal operation time | 3 h |
| Exchangeable control gear | Yes |
| Power factor | 0.9 |
Downloads
Description

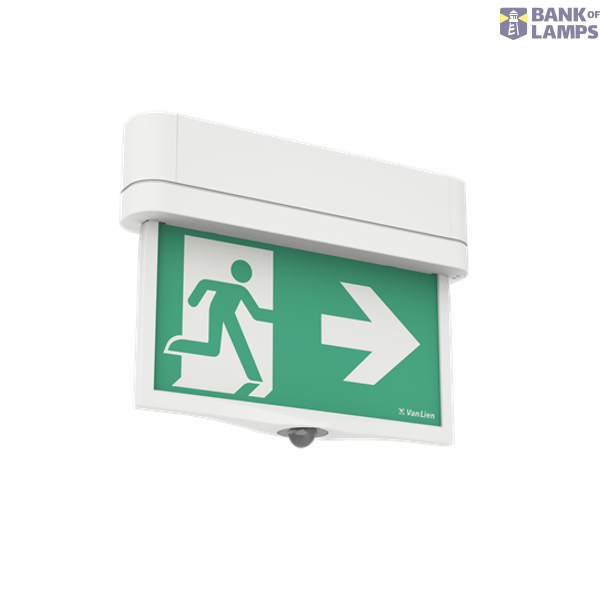

Movion hybrid exit sign surface wall or ceiling mounted 3hr 22m self-contained, self test LB400 protocol + pictograms
