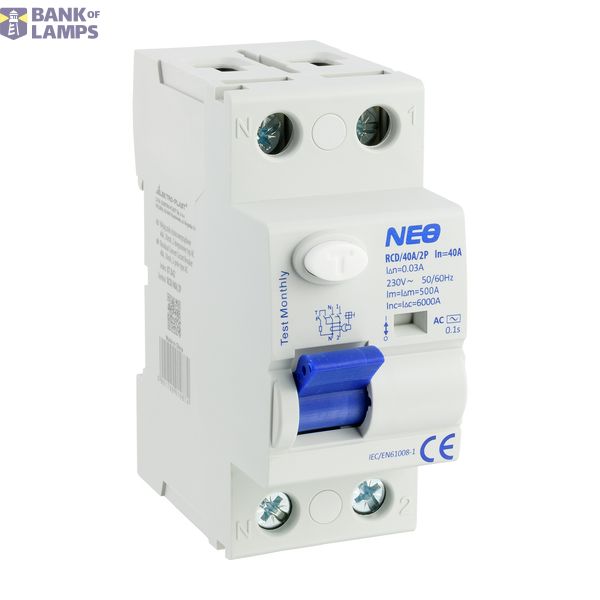

40A, 30mA, 2-pole differential circuit breaker, AC type RCD/40A/2P

Order only

EAN: 5901769019874

MPN: 05901769019874

Package: 1

No price options are available.

Technical Information

Item condition	New
Manufacture name	40A, 30mA, 2-pole differential circuit breaker, AC type RCD/40A/2P
Brand	Elektro-Plast
Categories	Residual Current Devices (RCCB)
ETIM	EC000003
Voltage type	AC
Rated current	40 A
Rated voltage	230 V
Rated insulation voltage Ui	500 V
Number of poles	2
Rated fault current	0.03 A
Leakage current type	AC
Selective protection	No
Short-circuit breaking capacity (Icw)	6 kA
Surge current capacity	3 kA
Short-time delayed tripping	Yes
Frequency	50 Hz
Rated impulse withstand voltage Uimp	4 kV

Packing details

Packing level 1

5901769019874

Other Technical data

Mounting method	DIN rail
Built-in depth	50 mm
Width in number of modular spacings	2
Explosion-proof	No
Degree of protection (IP)	IP20
Connectable conductor cross section solid-core	1-16 mm²
Connectable conductor cross section multi-wired	1-16 mm²
With interlocking device	No
Ambient temperature during operating	-5-40 °C
Additional equipment possible	No

Description

RCCB NEO Residual Current Circuit Breakers – Effective Protection Against Shock and Fire! The RCCB (Residual Current Circuit Breaker) is a key component of any electrical installation, ensuring safety by detecting leakage currents. It immediately disconnects the circuit when it detects that the outgoing current is not equal to the incoming current. This effectively protects devices, limiting the effects of damage and minimizing the risk of fire. In the event of indirect contact, it partially protects people from electric shock, while adequate insulation ensures full protection against direct contact. Key advantages of the RCCB NEO: Protection against electric shock – immediate disconnection of power supply when a leakage current is detected, significantly increasing user safety. Fire protection – rapid detection of even small leakage currents, which can lead to overheating of wires and fires. Reusable – after tripping, it can be reconnected, eliminating the need for replacement and ensuring ease of use. - Easy mounting on a TH35/DIN rail – quick and easy installation in standard electrical distribution boards, both in residential and industrial buildings. Thanks to its high operational precision and reliability, the RCCB NEO residual current circuit breaker guarantees maximum safety in any electrical installation. Choose a proven solution and effectively protect your home and workplace from electrical hazards!
