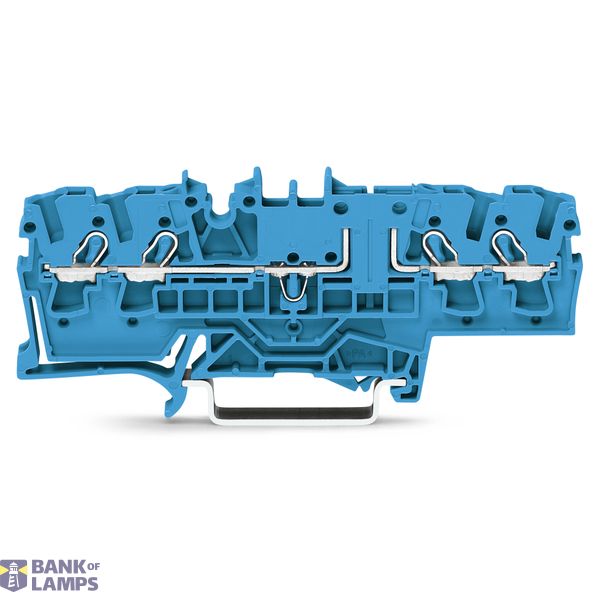

4-conductor through terminal block
Order only
Minimal order quantity: 50
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | 2002-1804 4-conductor through terminal block; 2.5 mm²; with test option |
| Brand | WAGO |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| ETIM | EC000897 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Rated voltage | 400 V |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Number of levels | 1 |
| Number of clamp positions per level | 4 |
| Connectable conductor cross section solid-core | 0.75-4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.75-2.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.25-4 mm² |
| Connectable conductor cross section multi-wired | 0.25-2.5 mm² |
| Rated current In | 16 A |
Packing details
| Packing level 1 | 4045454974701 |
| Packing level 2 | 4045454974701 |
Other Technical data
| Colour | Blue |
| Operating temperature | 105 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| Closing plate required | Yes |
| Internally connected stages | FALSE |
| Material insulation body | Thermoplastic |
| Explosion-tested version 'Ex e' | No |
Description
4-conductor through terminal block | 2.5 mm² | with test option | for Ex e II and Ex i applications | same profile as 4-conductor disconnect terminal block | side and center marking | for DIN-rail 35 x 15 and 35 x 7.5 | Push-in CAGE CLAMP®
