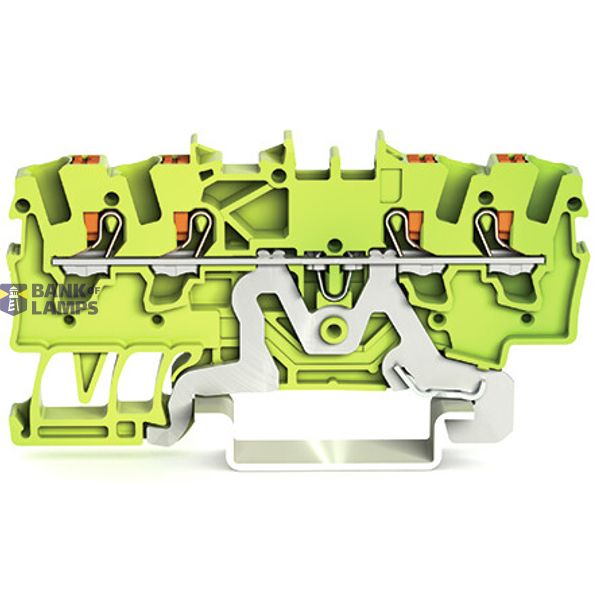

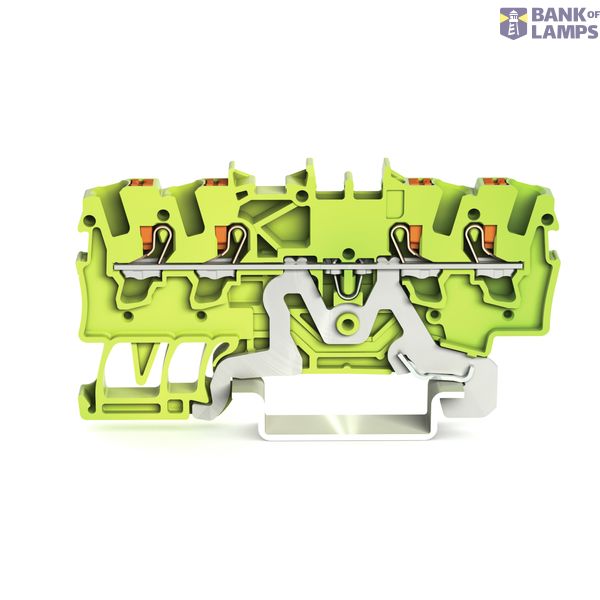

4-conductor ground terminal block with push-button 1.5 mm² green-yello
Order only
Minimal order quantity: 100
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | 4-conductor ground terminal block with push-button 1.5 mm² green-yello |
| Brand | WAGO |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| ETIM | EC000901 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| PEN function possible | Yes |
| Number of levels | 1 |
| Number of clamp positions per level | 4 |
| Connectable conductor cross section solid-core | 0.5-2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.75-1.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.25-2.5 mm² |
| Connectable conductor cross section multi-wired | 0.25-1.5 mm² |
Packing details
| Packing level 1 | 4055143695183 |
Other Technical data
| Colour | Green/yellow |
| Width | 4.2 mm |
| Height | 69.9 mm |
| Depth | 32.9 mm |
| Operating temperature | 105 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| Closing plate required | Yes |
| Material insulation body | Thermoplastic |
Description
4-conductor ground terminal block with push-button 1.5 mm² with test port side and center marking for DIN-rail 35 x 15 and 35 x 7.5 Push-in CAGE
