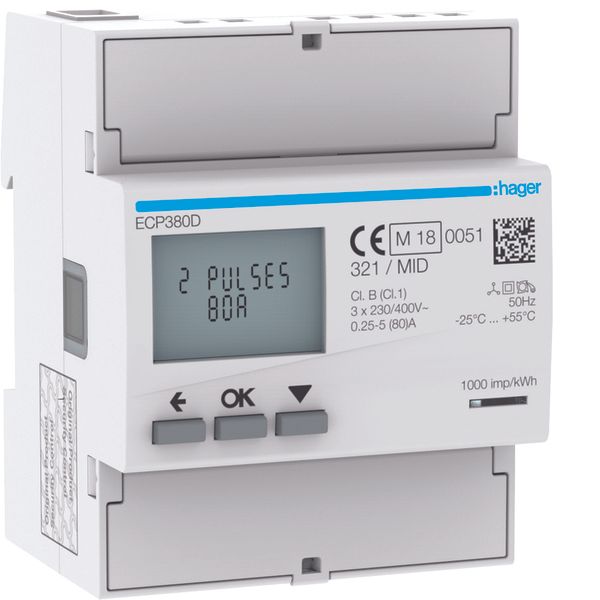

3Ph kWhmeter direct 80A 4M S0 MID
Order only
Price (excl. VAT):
201,49 €
per pcs
EAN: 3250612231416
MPN: ECP380D
Package: 1
Pallet: 576
Estimate delivery time to our warehouse: 2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | 3Ph kWhmeter direct 80A 4M S0 MID |
| Brand | Hager |
| Categories |
Electric meters
|
| Harmonized System Code | 9028 3011 00 |
| ETIM | EC001506 |
| Mounting method | DRA (DIN-rail adapter) |
| Width | 72 mm |
| Height | 92 mm |
| Depth | 60 mm |
| Frequency | 45-65 Hz |
| Max. current (Imax) | 80 A |
| Width in number of modular spacings | 4 |
| Degree of protection (IP) | IP20 |
| Pulse rate | 1-200 Imp/kWh (kvarh) |
| Pole type | Three conductor/four conductor |
| Nominal voltage (Un) N-L | 92-276 V |
| Nominal current (In) | 80 A |
Packing details
| Packing level 1 | 3250612231416, 3250612231416 |
| Packing level 2 | 3250612231416 |
| Packing level 3 | 3250612231416 |
Other Technical data
| Model | Direct measurement |
| Suitable for | Purchase/supply |
| Type of indication | Digital |
| Number of positions total (counter) | 9 |
| Type of meter | Electronic |
| Energy type | Effective power and blind power |
| Tariff type | Two-tariff |
| Tariff control | External |
| Escapement mechanism | Yes |
| Calibrated | Yes |
| Approval | Measuring Instruments Directive |
| Pulse output | Electrical |
| Pulse type | S0 |
| Accuracy class | B |
| Measurement type load profile | No |
| EEC40 signature | No |
| With lock code | No |
| Nominal voltage (Un) L-L | 160-480 V |
Description
3 Phase kWhmeter direct 80A 4M S0 MID
