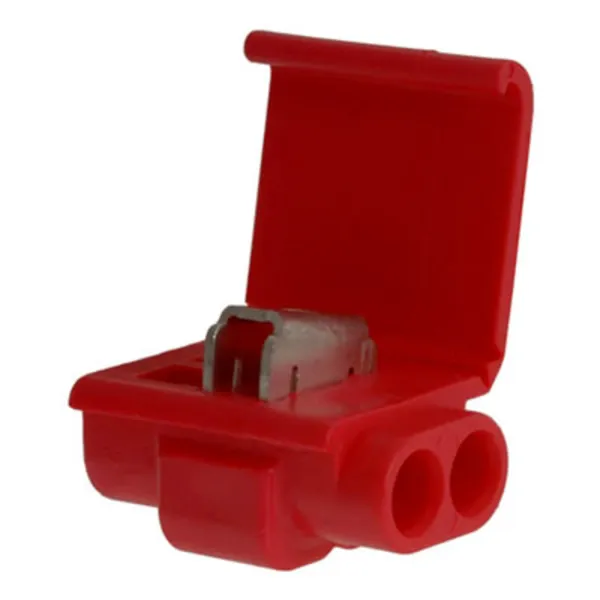

3M™ Scotchlok™ IDC Connector 557, BOX, Pigtail, Self-Stripping, Moistu

Order only Minimal order quantity: 1000

Price (excl. VAT):

0,223 €

This price is valid until 24.12.26

Subtotal: 223,00 € MOQ: 1000

EAN: 0054007214943

MPN: 7100166937

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	3M™ Scotchlok™ IDC Connector 557, BOX, Pigtail, Self-Stripping, Moistu
Brand	3M
Categories	Low Voltage Connectors
Country of origin*	US
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9010 00
Model	Single-conductor connector

Packing details

Packing level 1

0054007214943

Other Technical data

Grease filling against corrosion	No
Colour insulation	Red
Max. outer diameter	3.05 mm
Transparent	No
Interrupt free shifting	No
Material insulation	Polypropylene (PP)

Description

3M™ Scotchlok™ IDC Connector 557 has a dual element connection that electrically connects two 0.5 mm2 to 1.5 mm2 wire ends. This flame retardant connector has a maximum insulation O.D. diameter of 3.05 mm and an operating temperature of 105 °C.The dual element connection of flame retardant 3M™ Scotchlok™ IDC Connector 557 has a maximum insulation O.D. diameter of 3.05 mm and an operating temperature of 105 °C. This pigtail connector electrically connects two 0.5 mm² to 1.5 mm² wire ends and insulates the connection by using our unique ‘U’ contact.It’s quick and simple to use and is UL and CSA approved.
