3M™ Scotchlok™ Electrical IDC 314-POUCH, Pigtail, Self-Stripping, Blue
Order only
Minimal order quantity: 500
Price (excl. VAT):
0,60 €
Subtotal: 300,00 €
MOQ: 500
EAN: 0054007092305
MPN: 7100166936
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | 3M™ Scotchlok™ Electrical IDC 314-POUCH, Pigtail, Self-Stripping, Blue |
| Brand | 3M |
| Categories |
Low Voltage Connectors
|
| Country of origin* | US |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| Model | Single-conductor connector |
| Max. number of cores | 3 |
Packing details
| Packing level 1 | 0054007092305 |
Other Technical data
| Grease filling against corrosion | Yes |
| Colour insulation | Blue |
| Max. outer diameter | 3.9 mm |
| Transparent | No |
| Interrupt free shifting | No |
| Material insulation | Other |
Downloads
Description

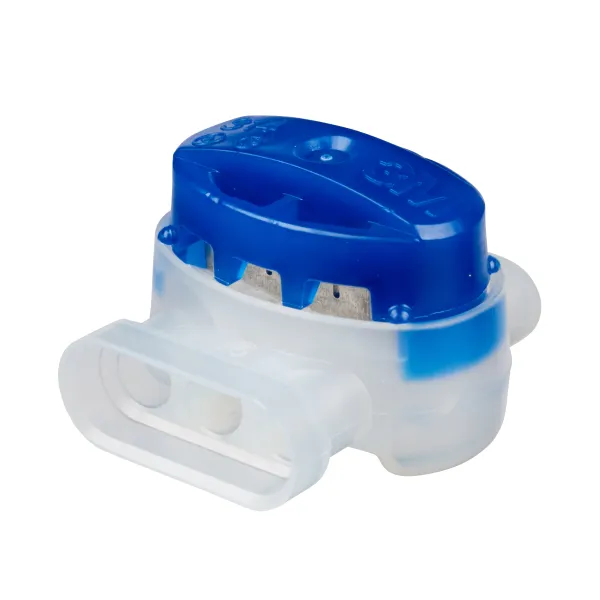

3M™ Scotchlok™ 314 IDC Pigtail Electrical Connector is self-stripping, flame-retardant and moisture-resistant, with a unique ‘U’ contact that provides a quick and dependable electrical connection.Provide a moisture resistant, flame retardant electrical connection for two or three wire ends with 3M™ Scotchlok™ IDC Connector 314 Our connector has a unique ‘U’ contact that provides a quick and dependable electrical connection that simply snaps shut without stripping or twisting the wire. It connects 0.5 mm² to 1.5 mm² wires. A live spring joint is made by driving the U contact down into the connector. As the U contact is pressed into the connector, it grasps the conductors as it displaces insulation.
