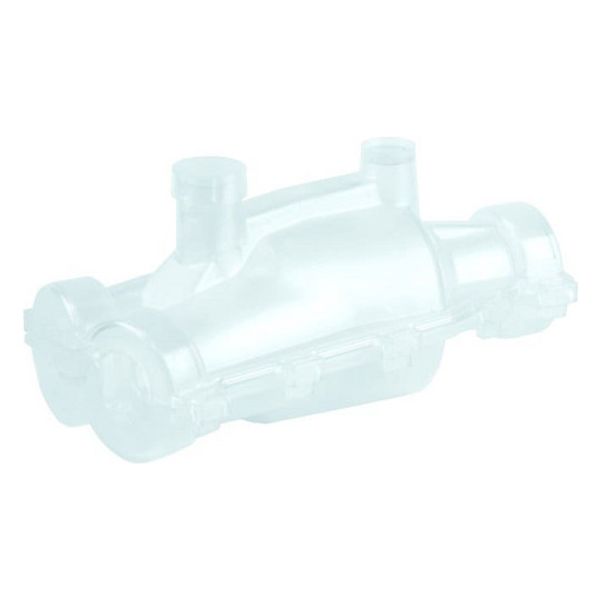

3M™ Scotchcast™ Resin branch kit series 92-NBB size B1, 1kV. kit inclu

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 8021684721007

MPN: 7000092627

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	3M™ Scotchcast™ Resin branch kit series 92-NBB size B1, 1kV. kit inclu
Brand	3M
Categories	Cable End Terminals & Connectors
Country of origin	BE
Harmonized System Code	3909 5090 90
Model	Cast resin
Suitable for	N(A)YY
Material insulating material	Plastic
With connection accessories	Screw connector
Rated voltage U0/U (Um)	0.6/1 (1.2) kV

Packing details

Packing level 1

8021684721007

Other Technical data

Halogen free	No
Number of conductors	5
Mining sector approval	No

Downloads

Safety data sheet

Description

3M™ Scotchcast™ Premium Resin Cable Joint Kits feature Scotchcast™ Electrical Insulating Resin 40, which is a high-quality, two-part polyurethane compound designed for general purpose electrical insulation, moisture sealing and mechanical protection.3M™ Scotchcast™ Premium Resin Cable Joint Kit series 92-NBA line is suitable for in-line application up to 1kV covering cable cross section range from 1.5 mm2 to 240 mm2. The series 92-NBA design allows for fast and clean installation thanks to the new 3M patented spout integrated in the resin bags and the kit shell. Correct cable setting is secured by the included phase spacer and the complete transparency of the kit shell. 3M™ Scotchcast™ 40 hydrophobic polyurethane resin meets CENELEC HD631.1 S2 requirements and is compliant with EU directive 2011/65/EU (RoHS) and EU directive 1907/2007/EC (REACH), guaranteeing the highest grade of electrical insulation for professional application.
