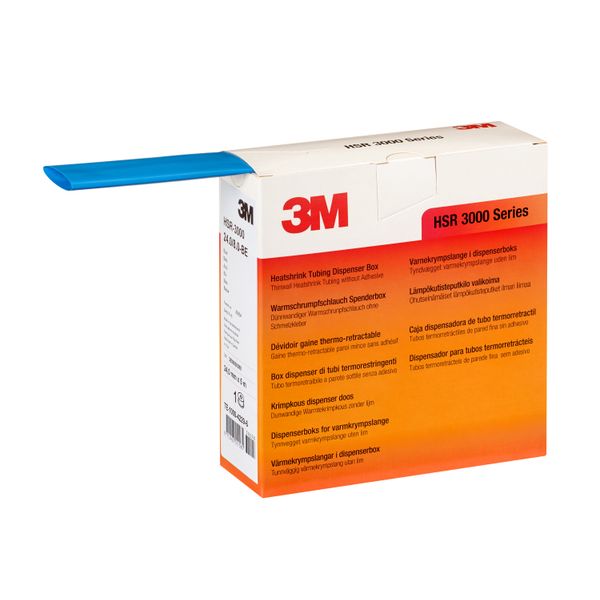

3M™ HSR-3000 Heat Shrink Tubing, Polyolefin, Blue, 24.0/8.0 mm, 5 m Ro
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 8712403551585
MPN: 7000099159
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | 3M™ HSR-3000 Heat Shrink Tubing, Polyolefin, Blue, 24.0/8.0 mm, 5 m Ro |
| Brand | 3M |
| Categories |
Heat Shrink Tubing
|
| Country of origin | NL |
| Harmonized System Code | 3917 3200 90 |
| Model | Thin-walled |
| Type | Heat-shrink |
| Inner diameter before heat-shrink | 24 mm |
| Inner diameter after heat-shrink | 8 mm |
| Nominal diameter inch | Other |
| Shrink rate | 3:1 |
Packing details
| Packing level 1 | 8712403551585 |
Other Technical data
| Colour | Blue |
| Halogen free | Yes |
| Wall thickness after shrinking | 1.1 mm |
| Length | 5 m |
| Material | Crosslinked polyolefin (XLPO) |
| Transparent | No |
| With inner glue | No |
| UL approval | No |
Downloads
Description
3M™ Heat Shrink Tubing HSR-3000 is a range of flexible, thin walled RoHS Heat Shrink Tubes, made of crosslinkedHalogen free Polyolefin. HSR 3000 provides good insulation protection in various industrialapplications. They are also suitable for cable marking and identification applications. HSR 3000tubes have 3:1 shrink ratio and are available in the following colours: Clear, Black, Red, Yellow, Blue, White, Green, Grey and Green/Yellow striped.3M™ HSR-3000 is a thinwall polyolefin heatshrink tubing. Shrink ratio is 3:1, minimum shrink temperature is 120°C, operating temperature is -55°C to +135°C. HSR-3000 is RoHS compliant, halogen free, PBDE free and provides good chemical resistance. HSR-3000 is a fast shrinking thinwall material and the prefered choice for general purpose electrical applications such as insulating, bundling, marking, mechanical abrasion protection, corrosion protection, strain relief of LV cables, wire termination and electrical connections. Compact mini-reel-format allows individually be cut to customized length. HSR-3000 is available in sizes from 1.5/0.5 mm to 24.0/8.0 mm with a wall thickness (recovered) of 0.45-1.0 mm in various colors black, green/yellow striped, clear, blue, brown, red, white, yellow and grey. Standard packaging in dispenser-box.
