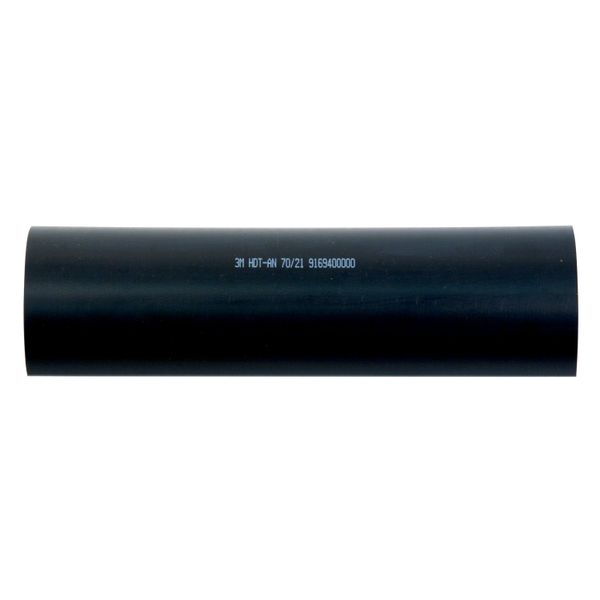

3M™ HDT-AN Heat Shrink Tubing, Polyolefin with Adhesive, Black, 70 mm,

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 4046719486199

MPN: 7000099382

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	3M™ HDT-AN Heat Shrink Tubing, Polyolefin with Adhesive, Black, 70 mm,
Brand	3M
Categories	Heat Shrink Tubing
Country of origin	NL
Harmonized System Code	3917 3200 90
Model	Thin-walled
Type	Heat-shrink
Inner diameter before heat-shrink	70 mm
Inner diameter after heat-shrink	21 mm
Nominal diameter inch	Other
Shrink rate	3:1

Packing details

Packing level 1

4046719486199

Other Technical data

Colour	Black
Halogen free	Yes
Wall thickness after shrinking	4.7 mm
Length	1 m
Material	Crosslinked polyolefin (XLPO)
Transparent	No
With inner glue	Yes
UL approval	No

Description

3M™ HDT-AN is a heavy wall, halogen free heat shrink tubing range, designed to provide reliable performance for electrical splices, connections and terminations up to 1,0 kV, as well as mechanical and environmental protection. HDT-AN heat shrink tubes have a halogen-free polyolefin crosslinked outer wall with a factory-applied adhesive inner layer.3M™ HDT-AN is a thickwall polyolefin heatshrink tubing with coextruded hot melt adhesive. Shrink ratio is up to 4:1, min. shrink temperature is 135°C, operating temperature is -55°C to +130°C. HDT-AN provides good chemical resistance, IP 68 sealing and is halogen free. The toughness and durability of the tubing make it well suited for exposed applications. HDT-AN is supplied with a specially designed hot melt adhesive layer. The adhesive is applied during extrusion of the tubing thus achieving a very smooth, constant adhesive layer which ensures excellent sealing properties. HDT-AN is ideal for sealing underground or exposed inline cable joints and terminations. HDT-AN is available in sizes from 12,0/3,0 mm to 130,0/36,0 mm with a wall thickness (recovered) of 2,5-5,5 mm in color black. Standard packaging 1 m pieces in display-pack. Certificate: RoHS compliant.
