3M™ Cold Shrink End Cap EC Series, EC-4
Order only
Minimal order quantity: 10
Price (excl. VAT):
25,82 €
Subtotal: 258,20 €
MOQ: 10
EAN: 0051138524432
MPN: 7000100910
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | 3M™ Cold Shrink End Cap EC Series, EC-4 |
| Brand | 3M |
| Categories |
Heat Shrink Tubing
|
| Country of origin | CN |
| Harmonized System Code | 4016 9997 90 |
| Type | Cold-shrink |
| Total length after shrink | 95 mm |
| Inner diameter before heat-shrink | 83.998 mm |
| Inner diameter after heat-shrink | 45.999 mm |
Packing details
| Packing level 1 | 0051138524432 |
Other Technical data
| Colour | Black |
| Model | Thin-walled |
| Halogen free | No |
| Material | Other |
| Transparent | No |
| With inner glue | No |
| Nominal diameter inch | Other |
| Shrink rate | 2:1 |
Description

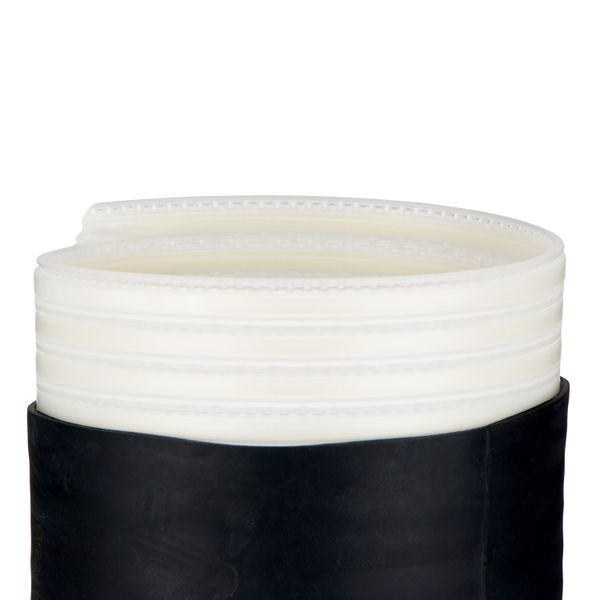

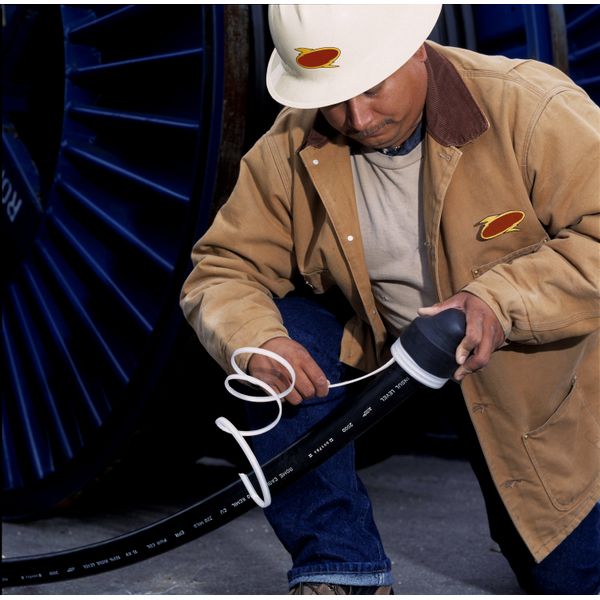

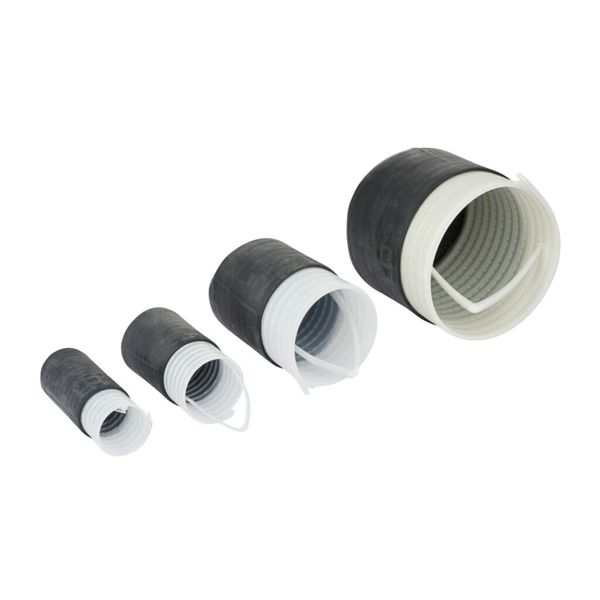

3M™ Cold Shrink End Caps EC Series are close-ended, tubular rubber sleeves that are factory expanded and loaded onto a removable core. When positioned over the end of a cable, pipe or other cylindrical object, the core is removed to provide a reliable environmental seal. Four different End Caps are available to accommodate a wide range of diameters from 11.7 mm up to 84.3 mm.3M™ Cold Shrink End Cap EC Series offers good resistance to abrasion, water, fungus, acids, alkalis and ozone to ensure long-lasting usage. Installation does not require any tools or tapes / mastics.
