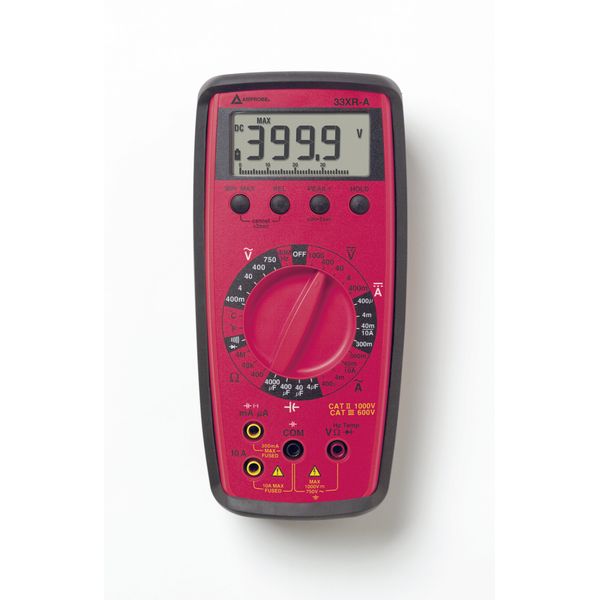

33XR-A 33XR-A Professional Digital Multimeter, temperature, capacitance
Order only
Price (excl. VAT):
175,07 €
EAN: 0095969365376
MPN: 2727788
Package: 1
Estimate delivery time to our warehouse: 2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | 33XR-A 33XR-A Professional Digital Multimeter, temperature, capacitance |
| Brand | Beha-Amprobe |
| Categories |
Measuring instruments
Multimeters |
| Country of origin* | TW |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9030 3200 00 |
| Indication | Analogue/digital |
| Measuring range selection | Manual |
| Max. voltage measuring range, AC | 750 V |
| Max. voltage measuring range, DC | 1000 V |
| Max. current measuring range, AC | 10 A |
| Max. current measuring range, DC | 10 A |
| Max. resistance measuring range | 4 MOhm |
| Measuring circuit category | CAT III |
| Degree of protection (IP) | IP2X |
| Max. temperature measuring range | 1000 °C |
| Max. capacitance measuring range | 4000 µF |
| Max. frequency measuring range | 1000 kHz |
Packing details
| Packing level 1 | 0095969365376 |
Other Technical data
| Measured value memory | No |
| True RMS measurement | No |
| Continuity test | Yes |
| Interface | No |
| Capacitance measurement | Yes |
| Frequency measurement | Yes |
| With decibel measurement (dB) | No |
| Data hold | Yes |
| IR interface | No |
| Explosion-tested version | No |
| Analogue bar graph display | Yes |
| Bluetooth interface | No |
| Resistance test/diode test | Yes |
| Inductance measurement | No |
| Lowest resolution, DC voltage | 0.1 mV |
| Lowest resolution, DC current | 0.1 µA |
| Lowest resolution, AC voltage | 0.1 mV |
| Lowest resolution, AC current | 0.1 µA |
| Lowest resolution, resistance | 0.1 Ohm |
| With conductivity measurement | No |
| Max. value storage | Yes |
| Multiple display | No |
| Min. value storage | Yes |
| Relative value measurement | Yes |
| Peak value memory | Yes |
| Duty cycle measurements | No |
| Temperature measurement | Yes |
| Lowest resolution temperature | 1 °C |
| Lowest resolution, capacitance | 0.1 µF |
| Lowest resolution, frequency | 1 Hz |
| Analogue bar graph display analogue/logarithmical | No |
| Temperature measurement TC | Yes |
| Cable length measurement | No |
| Cable symmetry testing for two wire connections a-b-E | No |
| Power and energy measurement | No |
| Harmonics analysis/power quality | No |
| Rotational speed measuring | No |
| Automatic circuit breaker | No |
| Max. voltage measuring circuit category | 600 V |
| With display backlight | No |
Downloads
Description
33XR-A,PROF DMM W TEMP AND CAPACITANCE
