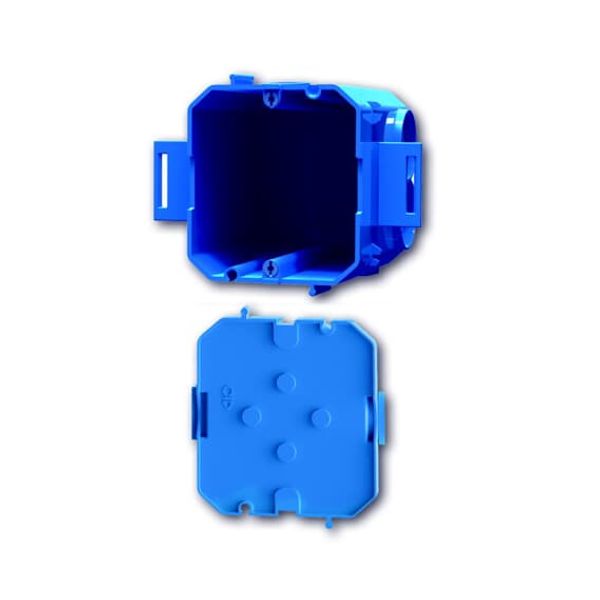

3068/11 Cover Frames carat® Blue
Order only
Price (excl. VAT):
5,22 €
per pcs
EAN: 8712507115119
MPN: 2CKA001740A0088
Package: 1
Estimate delivery time at our warehouse (approx.):
8-12 weeks
Technical Information
| Item condition | New |
| Manufacture name | 3068/11 Cover Frames carat® Blue |
| Brand | ABB |
| Categories |
Flush Mounted Junction Boxes
|
| Country of origin* | NL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| Mounting method | Concrete building |
| Model | Single |
| Shape | Rectangular |
| Equipped with | None |
| Connectable | Yes |
| Degree of protection (IP) | IP40 |
| Provided with revolving ring | No |
Packing details
| Packing level 1 | 8712507115119 |
Other Technical data
| Colour | Blue |
| Width | 65 mm |
| Halogen free | Yes |
| Surface protection | Untreated |
| Diameter | 0 mm |
| Construction type | Built-in installation box (device box) |
| Inner depth | 78 mm |
| Length | 71 mm |
| Sealable | No |
| Circuit integrity | None |
| Material | Plastic |
| Number of inlets | 10 |
| Mounting switching equipment | Screw or spread out |
| Cover attachment | Snapped on |
| For number of electric fittings | 1 |
| Luminaire hook mounting | No |
| With screening | No |
| With nail lugs | No |
| With screws | Yes |
| Air tight | No |
| Depth | 85 mm |
| For tube diameter | 20/25 mm |
| Inlet from the rear | Yes |
| Pipe locking | No |
| Special application | None |
| Clamp position fixed | No |
| Nozzle | Pipe socket |
| Housing feed-through by seal membrane | No |
| Housing feed-through by nozzle | Yes |
| Housing feed-through by step membrane | No |
| Pipe locking optional | No |
| Cover model | Construction protective cover |
| Housing feed-through by break-out opening | Yes |
| Transparent cover | No |
Downloads
Description
für flache Unterputzmontage, Betonbau Passend für carat® Rahmen. Geeignet für Werksfertigung und Ortbeton direkt auf der Schalung. Bestehend aus einer UP-Dose Betonwand 3060. Bestehend aus einem Deckel mit Abstandsschablone. Befestigung ausschließlich direkt auf der Schalung durch Aufnageln oder mit Heißkleber. Mit Torx- / Schlitzschrauben. Dosen direkt miteinander koppelbar. Mit Ausbrechöffnungen für Rohre.
