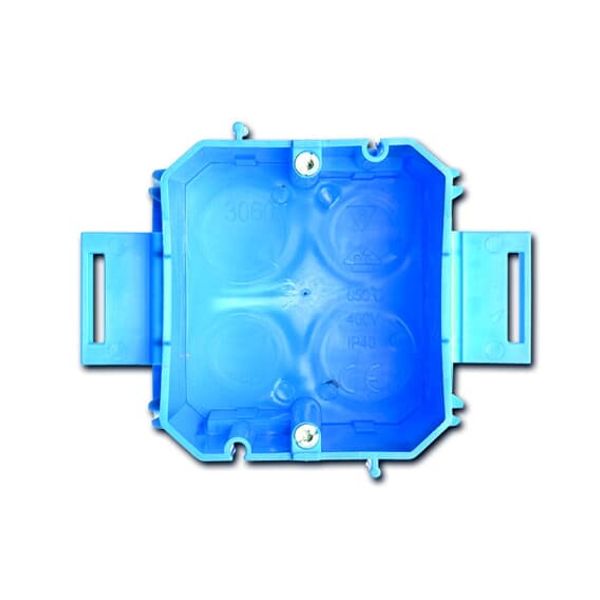

3060 Accessories Flush-mounted installation boxes and inserts Blue

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

1,95 € per pcs

This price is valid until 24.12.25

EAN: 8712507114853

MPN: 2CKA001740A0082

Package: 1

Box: 10

Estimate delivery time at our warehouse (approx.): 8-12 weeks

Technical Information

Item condition	New
Manufacture name	3060 Accessories Flush-mounted installation boxes and inserts Blue
Brand	ABB
Categories	Flush Mounted Junction Boxes
Country of origin	NL
Mounting method	Concrete building
Model	Single
Shape	Rectangular
Equipped with	None
Connectable	Yes
Degree of protection (IP)	IP40
Provided with revolving ring	No

Packing details

Packing level 1	8712507114853
Packing level 2	8712507114853
Packing level 3	8712507114853

Other Technical data

Colour	Blue
Width	65 mm
Halogen free	Yes
Surface protection	Untreated
Diameter	0 mm
Construction type	Built-in installation box (device box)
Inner depth	78 mm
Length	71 mm
Sealable	No
Circuit integrity	None
Material	Plastic
Number of inlets	10
Mounting switching equipment	Screw or spread out
Cover attachment	Snapped on
For number of electric fittings	1
Luminaire hook mounting	No
With screening	No
With nail lugs	No
With screws	Yes
Air tight	No
Depth	85 mm
For tube diameter	20/25 mm
Inlet from the rear	Yes
Pipe locking	Yes
Special application	None
Clamp position fixed	No
Nozzle	Pipe socket
Housing feed-through by seal membrane	No
Housing feed-through by nozzle	Yes
Housing feed-through by step membrane	No
Pipe locking optional	No
Cover model	Construction protective cover
Housing feed-through by break-out opening	Yes
Transparent cover	No

Downloads

Others

Description

Geeignet für Werksfertigung und Ortbeton direkt auf der Schalung. Bestehend aus einem Deckel. Befestigung ausschließlich direkt auf der Schalung durch Aufnageln oder mit Heißkleber. Mit Torx- / Schlitzschrauben. Dosen direkt miteinander koppelbar. Mit Ausbrechöffnungen für Rohre. Tiefe: 85 mm
