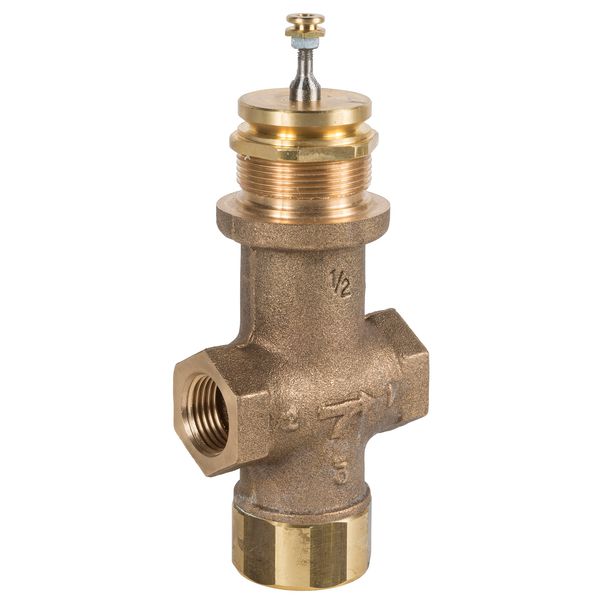

3-WAY VALVE, BRONZE, 1''
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
320,56 €
EAN: 3606489660536
MPN: MZX4501
Package: 1
Estimate delivery time at our warehouse (approx.):
6-9 weeks
Technical Information
| Item condition | New |
| Manufacture name | 3-WAY VALVE, BRONZE, 1'' |
| Brand | Schneider Electric |
| Categories |
Control Valves and Actuators
|
| Country of origin | IT |
| Harmonized System Code | 8481 8051 00 |
| Surface protection | Other |
| Material quality | Other |
| Article compression class | PN 16 |
| Flange compression class | PN 16 |
| Connections | Internal thread |
| Nominal diameter | 1 inch (25) |
| Characteristic curve | Linear |
| Characteristic curve for bypass | Linear |
Packing details
| Packing level 1 | 3606489660536 |
Other Technical data
| Max. medium temperature (continuous) | 120 °C |
| Min. medium temperature (continuous) | 2 °C |
| Outer pipe diameter all connections | 25 mm |
| With coupling connection 3 | No |
| Length of connection 1 | 0 mm |
| Length of connection 2 | 0 mm |
| Working length connection 1 | 0 mm |
| Working length connection 2 | 0 mm |
| Length of connection 3 | 0 mm |
| Working length connection 3 | 0 mm |
| Shaft height | 0 mm |
| With T-piece for 4-way connection | No |
| Stroke length | 12.7 mm |
| With coupling connection 1 | No |
| With coupling connection 2 | No |
| Housing material | Bronze |
| Kvs value | 8.3 |
| Max. pressure difference in opened position | 4 bar |
| Leakage loss of Kvs value | 0.1 % |
| Control ratio (Svo) | 50 % |
| KVS value for bypass | 8 |
| Leakage loss of KVS value for bypass | 0.5 % |
| Installation method, distributive | No |
Description
3-WEG VENTIEL, BRONZEN, 1"
