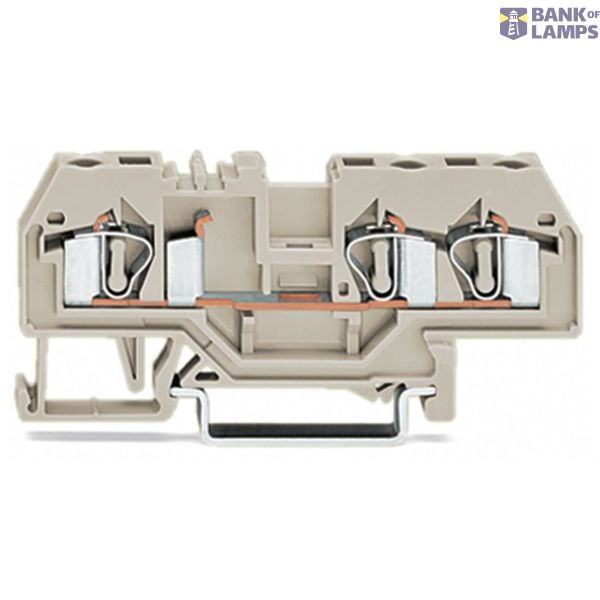

3-conductor through terminal block 4 mm² suitable for Ex e II applicat
Order only
Minimal order quantity: 50
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | 3-conductor through terminal block 4 mm² suitable for Ex e II applicat |
| Brand | WAGO |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| ETIM | EC000897 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Rated voltage | 550 V |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Number of levels | 1 |
| Number of clamp positions per level | 3 |
| Connectable conductor cross section solid-core | 0.2-4 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.2-4 mm² |
| Connectable conductor cross section multi-wired | 0.2-4 mm² |
| Rated current In | 30 A |
Packing details
| Packing level 1 | 4045454698195 |
| Packing level 2 | 4045454698195 |
Other Technical data
| Colour | Other |
| Width | 6 mm |
| Height | 73.5 mm |
| Depth | 29 mm |
| Operating temperature | 105 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| Closing plate required | Yes |
| Internally connected stages | FALSE |
| Material insulation body | Thermoplastic |
| Explosion-tested version 'Ex e' | Yes |
Description
3-conductor through terminal block 4 mm² suitable for Ex e II applications center marking for DIN-rail 35 x 15 and 35 x 7.5 CAGE CLAMP® 4,00 mm²
