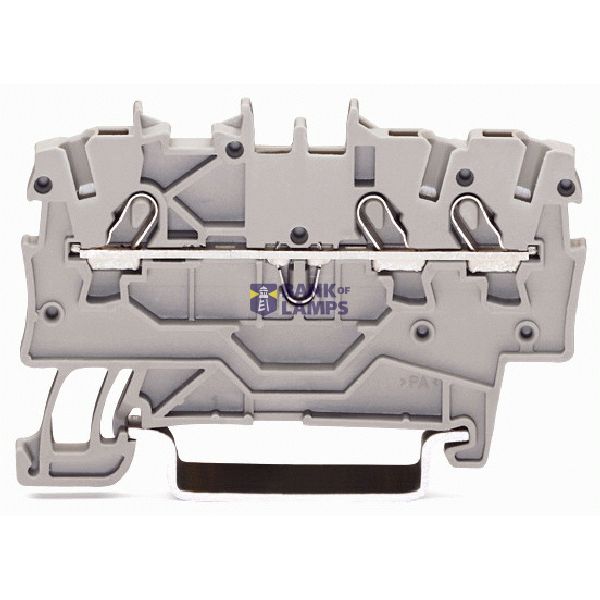

3-conductor through terminal block;1 mm²;suitable for Ex e II applicat
Order only
Minimal order quantity: 100
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | 3-conductor through terminal block;1 mm²;suitable for Ex e II applicat |
| Brand | WAGO |
| ETIM | EC000897 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Rated voltage | 800 V |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Number of levels | 1 |
| Number of clamp positions per level | 3 |
| Connectable conductor cross section solid-core | 0.5-1.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.5-0.75 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.14-1.5 mm² |
| Connectable conductor cross section multi-wired | 0.14-1 mm² |
| Rated current In | 13.5 A |
Packing details
| Packing level 1 | 4045454702472 |
Other Technical data
| Colour | Black |
| Width | 0 mm |
| Height | 0 mm |
| Depth | 0 mm |
| Operating temperature | 105 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| Closing plate required | Yes |
| Internally connected stages | No |
| Material insulation body | Thermoplastic |
| Explosion-tested version 'Ex e' | Yes |
