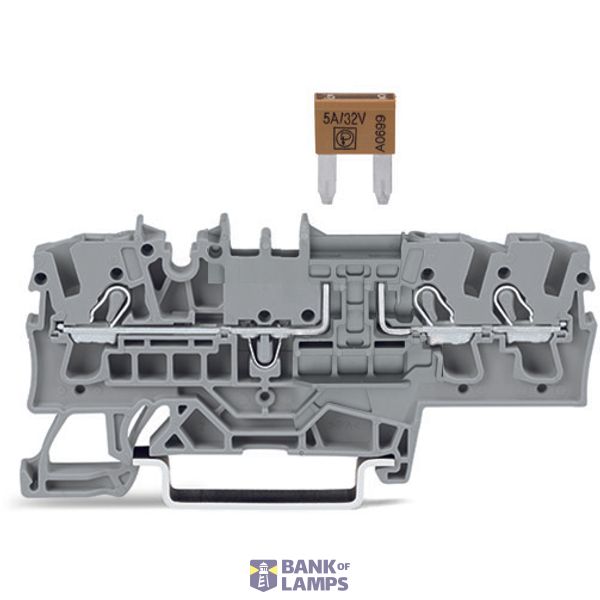

3-conductor fuse terminal block
Order only
Minimal order quantity: 50
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | 3-conductor fuse terminal block |
| Brand | WAGO |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| ETIM | EC000899 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Rated voltage | 10 V |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Type of fuse insert | Blade fuse |
| Type of fuse holder | Pluggable |
| Type of indication element for defect indication | None |
| Number of levels | 1 |
| Connectable conductor cross section solid-core | 0.75-4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.75-2.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.25-4 mm² |
| Connectable conductor cross section multi-wired | 0.25-2.5 mm² |
| Rated current In | 400 A |
Packing details
| Packing level 1 | 4050821707592 |
Other Technical data
| Colour | Grey |
| Operating temperature | 105 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| Closing plate required | Yes |
| Material insulation body | Thermoplastic |
Description
3-conductor fuse terminal block | for mini-automotive blade-style fuses | per DIN 7258-3f, ISO 8820-3 | with test option | without blown fuse indication | 2.5 mm² | Push-in CAGE CLAMP®
