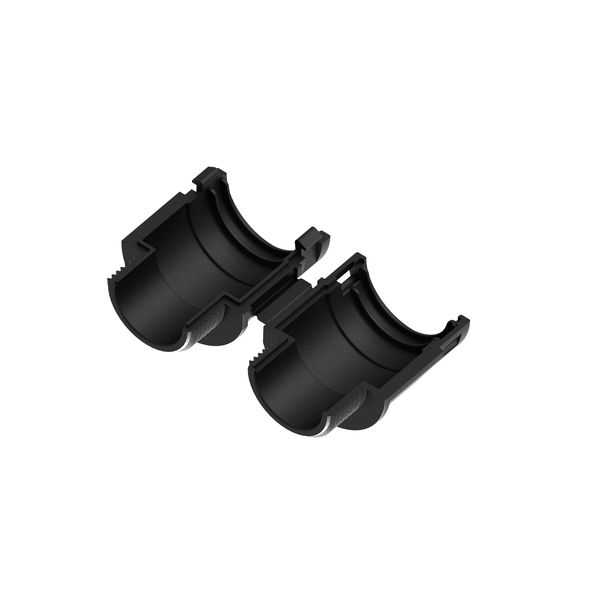

2SPA-14M20PB zwart Wartel deelbaar
Order only
Price (excl. VAT):
Price by request
EAN: 4049504211754
MPN: 4910300300
Package: 1
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | 2SPA-14M20PB zwart Wartel deelbaar |
| Brand | FRÄNKISCHE |
| Categories |
Cable Hoses
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 3917 4000 00 |
| Material | Polyamide (PA) |
| Nominal diameter | 48 mm |
| Nominal size in inch | Other |
| Degree of protection (IP) | IP66/IP67/IP68/IP69 |
Packing details
| Packing level 1 | 4049504211754 |
Other Technical data
| Colour | Black |
| Model | Straight |
| Type of connection | Thread |
| Thread length | 11 mm |
| Total length | 102 mm |
| Construction type | External thread |
| Operating temperature | -50-120 °C |
| Revolving thread | No |
| Thread type | Metric |
| Lowest inner diameter hose | 13.2 mm |
| Total height | 41 mm |
| Approved in combination with protective conduit UR | No |
| Approved in combination with protective conduit CSA | No |
| Approved in combination with protective conduit Lloyd's Register | No |
| Max. outer diameter hose | 54.2 mm |
| Thread material | Polyamide (PA) |
| Transparent | No |
| Thread connection size | M20 x 1.5 |
| Approved in combination with protective conduit according to DIN EN 61386-23 | No |
| Thread per inch | 16.93 |
| Material sealing | No sealing |
| Approved in combination with protective conduit VdTÜV/GGVSEB | No |
Downloads
Declaration RoHS
Declaration DOC CE (Declaration of conformity CE)
Dimensioned drawing
Product data sheet
Construction Products Regulation
Description
FIPSPLIT® deelbare wartel 2SPA-M van speciaal geformuleerd polyamide 6, met metrische schroefdraad voor deelbare flexibele FIPSPLIT®-buizen.
