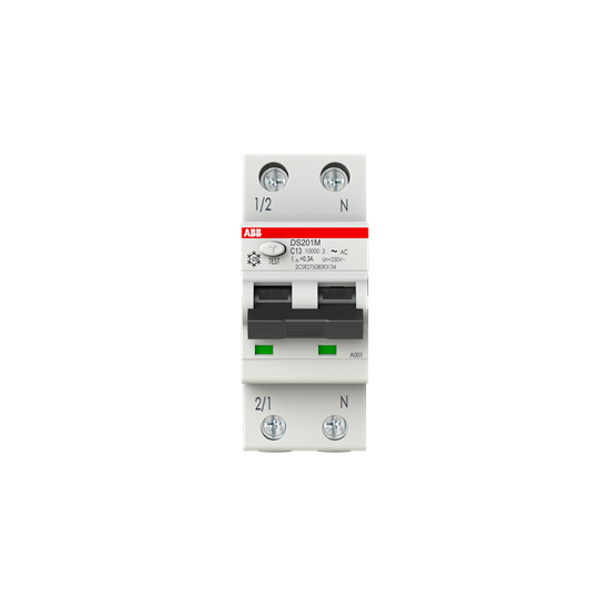

DS201 M C13 AC300 Residual Current Circuit Breaker with Overcurrent Protection

Order only

Price (excl. VAT):

89,87 € per pcs

This price is valid until 31.12.30

EAN: 8012542775119

MPN: 2CSR275080R3134

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	DS201 M C13 AC300 Residual Current Circuit Breaker with Overcurrent Protection
Brand	ABB
Categories	RCBO - (Earth Leakage Breakers)
Harmonized System Code	8536 3010 00
Rated current	13 A
Rated voltage	240 V
Release characteristic	C
Rated fault current	0,3 A
Leakage current type	AC
Degree of protection (IP)	IP20
Number of protected poles	1
Ambient temperature during operating	-25-55 °C
Number of poles (total)	2

Packing details

Packing level 1	8012542775119
Packing level 2	8012542775119, 8012542419754

Other Technical data

Voltage type	AC
Built-in depth	69 mm
Surge current capacity	0 kA
Current limiting class	3
Pollution degree	2
Width in number of modular spacings	2
Frequency	50/60 Hz
Concurrently switching neutral conductor	TRUE
Rated short-circuit breaking capacity according to IEC 60947-2	15 kA
With interlocking device	FALSE
Flush-mounted installation	FALSE
Anti-nuisance tripping version	FALSE
Rated short-circuit breaking capacity according to EN 61009	10 kA

Downloads

Declaration DOC CE (Declaration of conformity CE) Declaration RoHS

Description

DS201 M C13 AC300; kombinace jistič/chránič; dvojpólový (1P+N); jmenovitý proud: 13A; citlivost: 300mA; charakteristika: C; zkratová odolnost: 10kA; Typ: AC – pro střídavý reziduální proud (určeno pro obecné zátěže)
