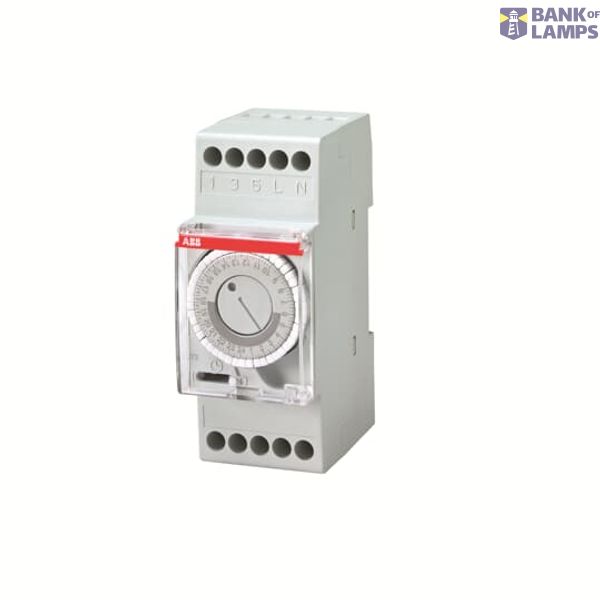

2CSM231235R0601 - ABB
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | 2CSM231235R0601 - ABB |
| Brand | ABB |
| Country of origin* | HU |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 4900 00 |
| ETIM | EC002304 |
| Mounting method | DIN rail |
| Number of channels | 1 |
| Annual program | FALSE |
| Contact type | Change-over contact |
| 60 min program | FALSE |
| Automatic switching summer-/winter time | FALSE |
| Suitable for manual operation | TRUE |
| Switching preselection | FALSE |
| Voltage type of supply voltage | AC |
| Potential free switch contact | FALSE |
| Supply voltage | 230 V |
| Frequency supply voltage | 50-60 Hz |
| Nominal switching current at 250 V AC | 16 A |
| Degree of protection (IP) | IP20 |
| Accuracy per day | 1 s |
| Max. switching power LED | 0 W |
Other Technical data
| Width | 35 mm |
| Height | 90 mm |
| Depth | 60 mm |
| Weekly program | FALSE |
| Width in number of modular spacings | 2 |
| 24 h program | TRUE |
| Mains synchronous | FALSE |
| Quartz controlled | TRUE |
| Autonomy in years | 0 |
| Autonomy in hours | 150 |
| Shortest switching time channel 1 | 15 min |
| Shortest switching time channel 2 | 0 min |
| Program shift divide 1 | 96 min |
| Program shift divide 2 | 0 min |
Description
AT2e-R Daily electro-mechanical time switch, withrunning reserve, 2 modules, 15 minutes minimum switching tme
