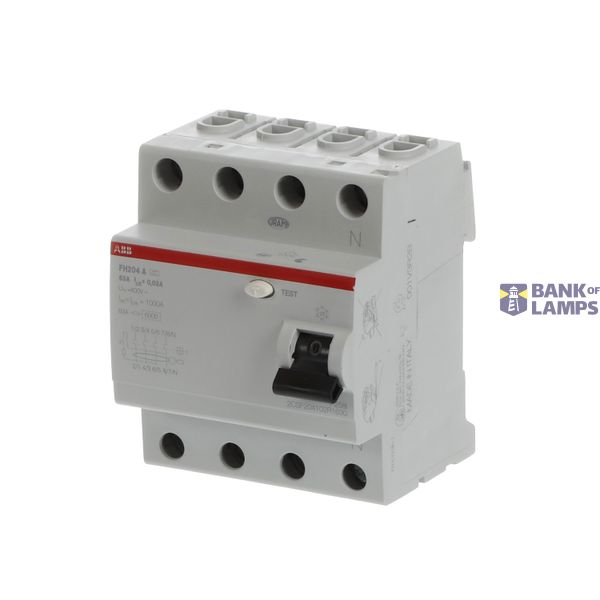

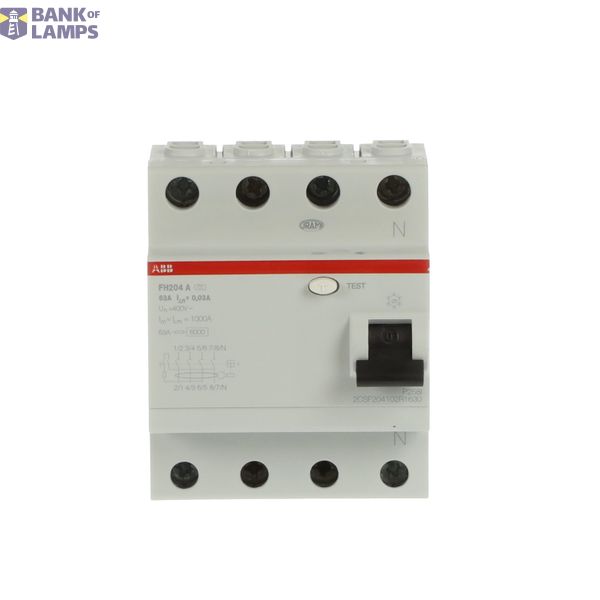

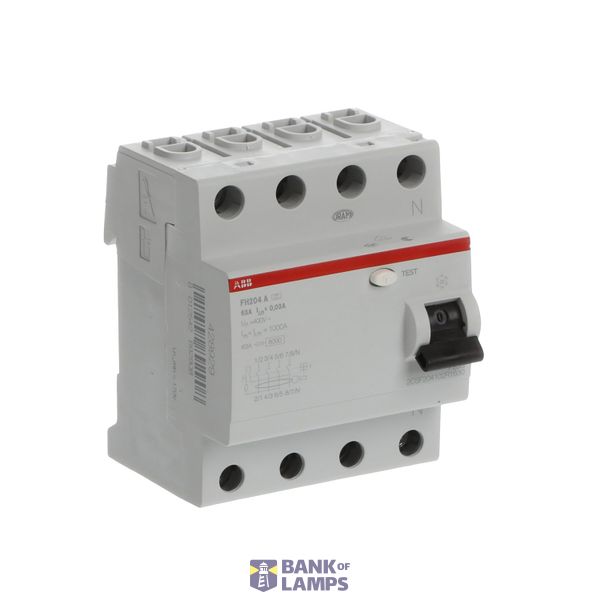

2CSF204162R1630 - ABB
Order only
Price (excl. VAT):
77,12 €
EAN: 8012542634058
MPN: 2CSF204162R1630
Package: 1
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | 2CSF204162R1630 - ABB |
| Brand | ABB |
| Categories |
RCCB - (Residual Current Breakers)
|
| Country of origin* | IT |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3030 00 |
| Rated current | 63 A |
| Number of poles | 4 |
| Rated fault current | 0.03 A |
| Leakage current type | A |
| Selective protection | No |
| Short-circuit breaking capacity (Icw) | 6 kA |
| Surge current capacity | 0.25 kA |
| Short-time delayed tripping | No |
| Frequency | 50 Hz |
| Rated impulse withstand voltage Uimp | 4 kV |
Packing details
| Packing level 1 | 8012542634058, 8012542634058 |
Other Technical data
| Mounting method | DIN rail |
| Built-in depth | 69 mm |
| Pollution degree | 2 |
| Width in number of modular spacings | 4 |
| Explosion-proof | No |
| Degree of protection (IP) | IP20 |
| Connectable conductor cross section solid-core | 25 mm² |
| Connectable conductor cross section multi-wired | 10-25 mm² |
| With interlocking device | Yes |
| Ambient temperature during operating | -25-55 °C |
| Additional equipment possible | No |
Description
The RCCBs FH200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous AC and A types is particularly suitable for installation in domestic applications.
