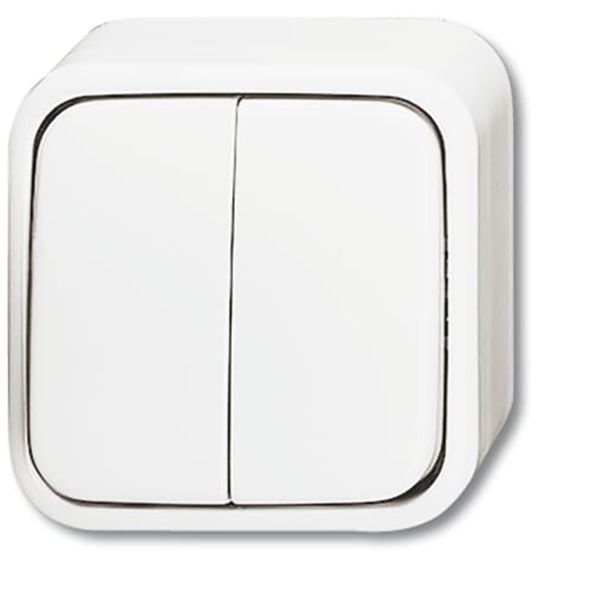

2601/5 AP/11W-503 Design Busch - Duro 2000
Order only
Price (excl. VAT):
23,96 €
per pcs
EAN: 4011395196311
MPN: 2CKA001042A1031
Package: 1
Box: 10
Pallet: 2700
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | 2601/5 AP/11W-503 Design Busch - Duro 2000 |
| Brand | Busch-Jaeger |
| Categories |
Switches
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| Nominal voltage | 250 V |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Basic element with complete housing |
| Method of operation | Rocker/button |
| Rated current | 10 A |
| Type of fastening | Other |
| Wiring system | Series switch |
| Suitable for degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 4011395196311 |
| Packing level 2 | 4011395196311 |
| Packing level 3 | 4011395196311 |
| Packing level 4 | 4011395196311 |
Other Technical data
| Colour | White |
| Halogen free | Yes |
| With mounting plate | No |
| Connection type | Push-in clamp |
| Illumination | Optional |
| Surface protection | Untreated |
| Built-in depth | 0 mm |
| Feedback-signal contact | No |
| Material quality | Duroplast |
| Type of lighting | Glow lamp |
| Material | Plastic |
| Number of rockers | 2 |
| RAL-number (similar) | 9010 |
| Switching current for fluorescent lamps | 10 AX |
| Push button switch | No |
| Washing machine switch | No |
| Surface finishing | Glossy |
| Device width | 0 mm |
| Device height | 0 mm |
| Device depth | 0 mm |
| Label space/information surface | No |
| Function lighting | Orientation |
| Number of modules (module system) | 1 |
| IFTTT support available | No |
| Min. depth of built-in installation box | 0 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Heating switch | No |
| Anti-bacterial treatment | No |
Downloads
Description
Beleuchtbar durch Einsetzen der Lampe 8339-1.
