Register to unlock your exclusive B2B prices and start shopping. Sign up now!

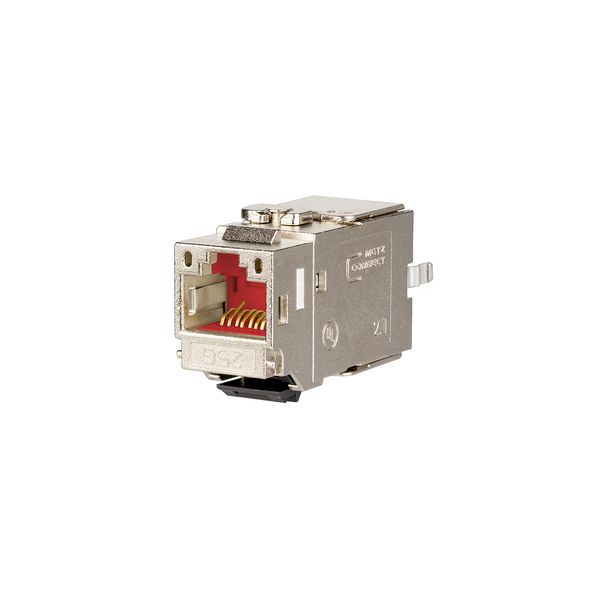

25Gmodul - Keystone
Order only
Minimal order quantity: 10
Price (excl. VAT):
12,13 €
Subtotal: 121,30 €
MOQ: 10
EAN: 4251394607405
MPN: 130B21-25-E
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | 25Gmodul - Keystone |
| Brand | METZ CONNECT |
| Categories |
Telecommunication Distribution Components
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Model | Bus (jack) |
| Screened | Yes |
| Type of connector | RJ45 8(8) |
Packing details
| Packing level 1 | 4251394607405 |
| Packing level 2 | 4251394607405 |
Other Technical data
| Colour | Silver |
| Connection type | Insulation displacement connector |
| Suitable for round cable | Yes |
| Suitable for flat cable | No |
| Suitable for litz wire conductor | Yes |
| Suitable for solid core | Yes |
| AWG-range | 22-26 |
| Transparent | No |
| Special tool necessary | No |
| Compatible with Grade2TV according to XP-C 90-483 | No |
| Compatible with Grade3TV according to XP-C 90-483 | No |
Description
Certified by GHMT according to ISO/IEC TR-11801-9905 for 25GBASE-T in the Channel-Link with 30 m, in preparation: ISO/IEC TR-11801-9909 for 25GBASE-T in channel link over 30 m, completely downward compatible by complying with class E, A according to ISO/IEC 11801-1 and DIN EN 50173-1 (within the permanent link up to 90m, within the permanent link up to 100m)RJ45 according to IEC 60603-7-1, 2 mounting versions: module and keystone, mounting without special tools, low mounting and connection time, migrating 10G-systems without special tools, connection of patch- and installations cords is possible for: AWG 26/7 - 22/7 and AWG 26/1 - 22/1, suitable for 25GBit/s Ethernet (IEEE 802.3bq) and 10 GBit/s Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE), HDBaseT, SAT-IP and AVoverIP, solid, reusable module housing refined with zinc die-casting, intelligent cable management in stuffer caps - also suitable for heavily twisted cables - also easy installation in various applications, strain relief by latching clip directly on the stuffer cap, 360°-shield connection, dust protection cover (optional)
