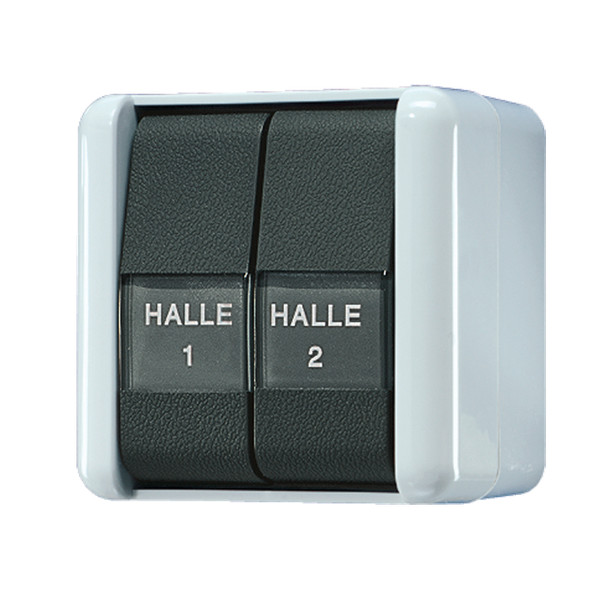

2-gang push-button, 10 AX / 250 V ~ 839NAW
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
38,96 €
EAN: 4011377659803
MPN: 839NAW
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | 2-gang push-button, 10 AX / 250 V ~ 839NAW |
| Brand | Jung |
| Categories |
Switches
|
| Country of origin | DE |
| Harmonized System Code | 8536 5080 00 |
| Nominal voltage | 250 V |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Basic element with complete housing |
| Method of operation | Rocker |
| Colour | Grey |
| Model | Series push button |
| Halogen free | Yes |
| Imprint | None |
| Surface protection | Other |
| With signal lamp | No |
| Rated current | 10 A |
| Label space/information surface | Yes |
| Feedback-signal contact | No |
| Material quality | Thermoplastic |
| Number of poles | 0 |
| Material | Plastic |
| Type of fastening | Screw mounting |
| Number of rockers | 2 |
| With lighting | Yes |
| RAL-number (similar) | 7035 |
| Transparent | No |
| Surface finishing | Glossy |
| Suitable for degree of protection (IP) | IP44 |
| Device width | 75 mm |
| Device height | 75 mm |
| Device depth | 58 mm |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
| Anti-bacterial treatment | No |
Packing details
| Packing level 1 | 4011377659803 |
| Packing level 2 | 4011377659803 |
Downloads
Description
2-gang push-button switch.Used to control electrical circuits by toggling between closed or open states.Suitable for general residential or light commercial installations requiring up to 10 A current handling at nominal 250 V. Surface-mounted, plaster configuration.Halogen-free thermoplastic construction with grey color matching RAL 7035.Glossy finishing, plastic material quality rated as thermoplastic for durability and corrosion resistance without added surface protection methods beyond base properties.Screw fastening installation method supported;rocker operation mechanism equipped with two rockers providing user input control points. Device dimensions:width 75 mm, height 75 mm, depth 58 mm.IP44 rating confirms its suitability in environments demanding medium-level ingress protection against dust and water intrusion risks.Includes built-in lighting feature for visibility feedback but no signal lamp or feedback-signal contact integrated within design architecture. No print marking present on the label space/information surface provided for annotations during installation maintenance cycles where applicable assembly standards demand layout documentation clarity per EV code fixture specifications across basic models identical in function establishments involving multiple units relay requirements scenarios scale load junctions inspections bank testing
