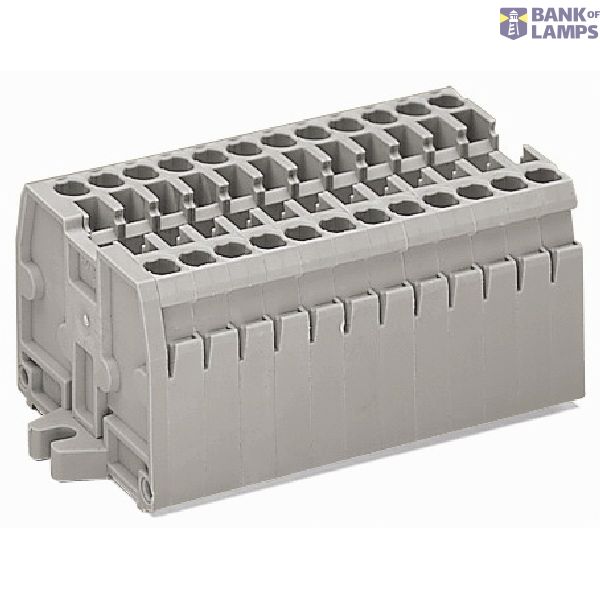

2-conductor terminal strip without push-buttons with fixing flanges M4
Order only
Minimal order quantity: 100
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | 2-conductor terminal strip without push-buttons with fixing flanges M4 |
| Brand | WAGO |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| ETIM | EC001284 |
| Rated voltage | 500 V |
| Rated current In | 24 A |
| Explosion-tested version 'Ex e' | No |
Packing details
| Packing level 1 | 4044918482080 |
Other Technical data
| Mounting method | Other |
| Colour | Other |
| Width | 0 mm |
| Height | 0 mm |
| Depth | 0 mm |
| Number of poles | 2 |
| Operating temperature | -30-85 °C |
| Number of clamp positions per pole | 2 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Closing plate required | No |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Transparent | No |
| Connectable conductor cross section solid-core | 0.08-2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.25-2.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.08-4 mm² |
| Connectable conductor cross section multi-wired | 0.08-2.5 mm² |
| Material insulation body | Thermoplastic |
Description
2-conductor terminal strip without push-buttons with fixing flanges M4 2-pole for screw or similar mounting types Fixing hole 4.2 mm Ø 2.5 mm²
