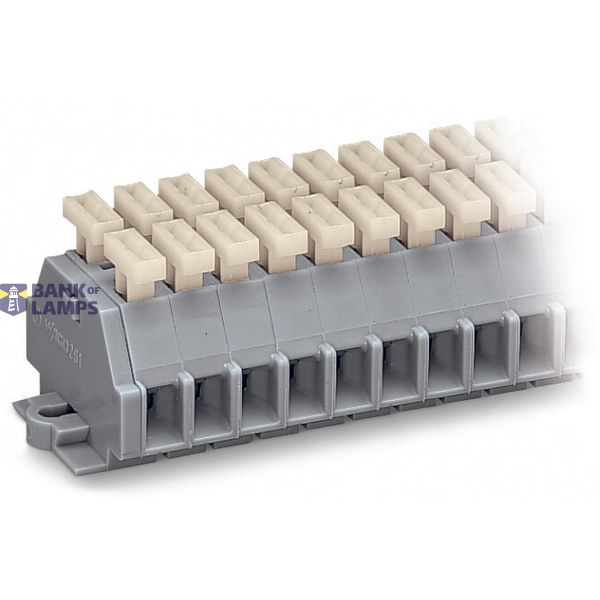

2-conductor terminal strip
Order only
Minimal order quantity: 100
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | 2-conductor terminal strip |
| Brand | WAGO |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| ETIM | EC001284 |
| Rated voltage | 500 V |
| Rated current In | 24 A |
| Explosion-tested version 'Ex e' | No |
Packing details
| Packing level 1 | 4044918629713 |
Other Technical data
| Mounting method | Other |
| Colour | Grey |
| Number of poles | 6 |
| Operating temperature | -30-85 °C |
| Number of clamp positions per pole | 2 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Closing plate required | No |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Transparent | No |
| Connectable conductor cross section solid-core | 0.08-2.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.08-2.5 mm² |
| Connectable conductor cross section multi-wired | 0.08-2.5 mm² |
| Material insulation body | Thermoplastic |
Description

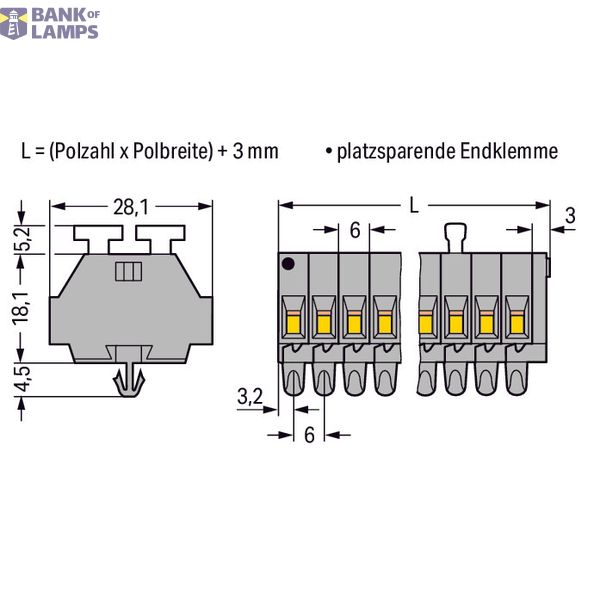

2-conductor terminal strip | 6-pole | on both sides with push-buttons | with snap-in mounting feet | for plate thickness 0.6 - 1.2 mm | Fixing hole 3.5 mm Ø | 2.5 mm² | CAGE CLAMP®
