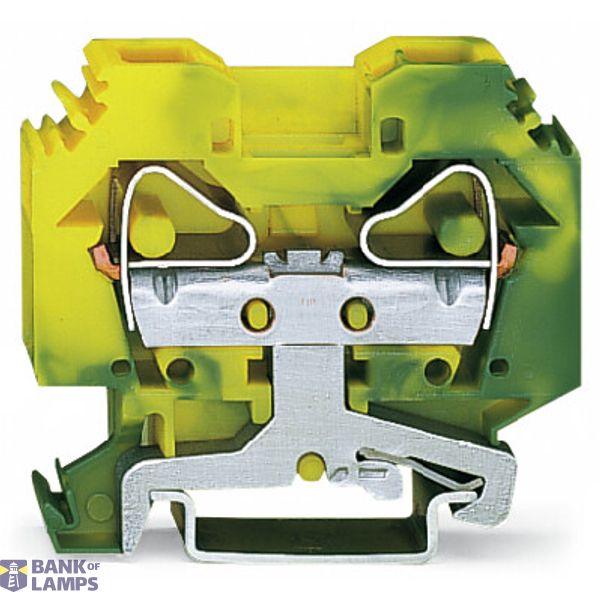

2-conductor ground terminal block

Name: 2-conductor ground terminal block
Brand: WAGO
Availability: PreOrder

Order only Minimal order quantity: 50 Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	2-conductor ground terminal block
Brand	WAGO
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
ETIM	EC000901
Mounting method	DIN rail (top hat rail) 35 mm
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
PEN function possible	Yes
Number of levels	1
Number of clamp positions per level	2
Connectable conductor cross section solid-core	0.2-16 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2-16 mm²
Connectable conductor cross section multi-wired	0.2-16 mm²

Packing level 1

4045454084530

Colour	Green/yellow
Operating temperature	105 °C
Inflammability class of insulation material according to with UL94	V0
Closing plate required	Yes
Material insulation body	Thermoplastic

2-conductor ground terminal block | 16 mm² | lateral marker slots | for DIN-rail 35 x 15 and 35 x 7.5 | CAGE CLAMP®
