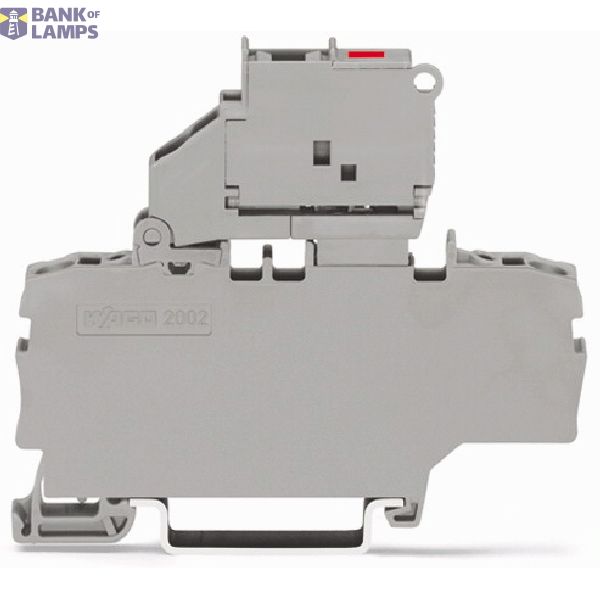

2-conductor fuse terminal block with pivoting fuse holder with additio

Name: 2-conductor fuse terminal block with pivoting fuse holder with additio
Brand: WAGO
Availability: PreOrder

Order only Minimal order quantity: 50 Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	2-conductor fuse terminal block with pivoting fuse holder with additio
Brand	WAGO
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9095 00
ETIM	EC000899
Mounting method	DIN rail (top hat rail) 35 mm
Rated voltage	250 V
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Type of fuse insert	G-fuse 5x20 mm
Type of fuse holder	Swivelling
Type of indication element for defect indication	LED
Supply voltage for defect-indication	30-65 V
Number of levels	1
Voltage type for defect indication	AC
Connectable conductor cross section solid-core	0.75-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.75-2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.25-4 mm²
Connectable conductor cross section multi-wired	0.25-2.5 mm²
Rated current In	6.3 A

Packing level 1

4050821089124

Colour	Grey
Width	6.2 mm
Height	72.9 mm
Depth	57.6 mm
Operating temperature	105 °C
Inflammability class of insulation material according to with UL94	V0
Closing plate required	Yes
Material insulation body	Thermoplastic

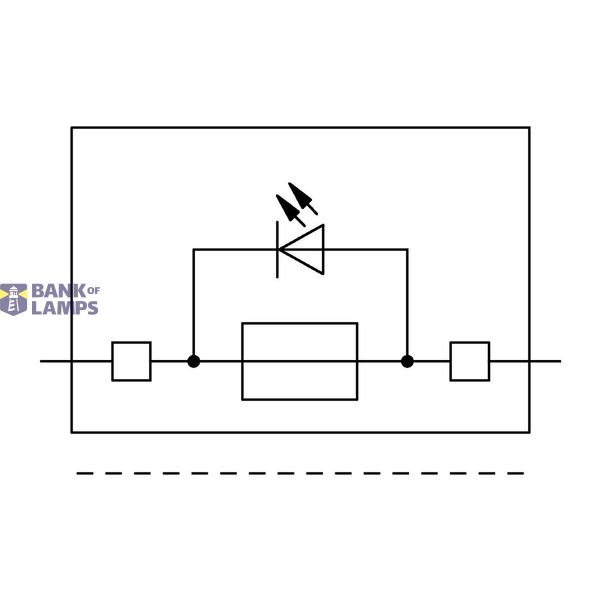

2-conductor fuse terminal block with pivoting fuse holder with additional jumper position for 5 x 20 mm miniature metric fuse with blown fuse indi
