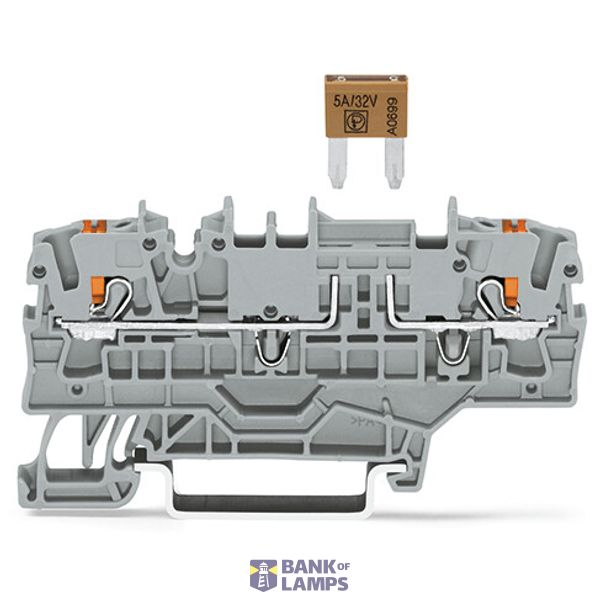

2-conductor fuse terminal block for mini-automotive blade-style fuses
Order only
Minimal order quantity: 50
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | 2-conductor fuse terminal block for mini-automotive blade-style fuses |
| Brand | WAGO |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9095 00 |
| ETIM | EC000899 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Rated voltage | 400 V |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Type of fuse insert | Blade fuse |
| Type of fuse holder | Pluggable |
| Type of indication element for defect indication | None |
| Number of levels | 1 |
| Connectable conductor cross section solid-core | 0.75-4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.75-2.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.25-4 mm² |
| Connectable conductor cross section multi-wired | 0.25-2.5 mm² |
| Rated current In | 10 A |
Packing details
| Packing level 1 | 4055144029550 |
Other Technical data
| Colour | Grey |
| Width | 5.2 mm |
| Height | 72.9 mm |
| Depth | 32.9 mm |
| Operating temperature | 105 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| Closing plate required | No |
| Material insulation body | Thermoplastic |
Description
2-conductor fuse terminal block for mini-automotive blade-style fuses per DIN 7258-3f, ISO 8820-3 with test option with additional jumper position
