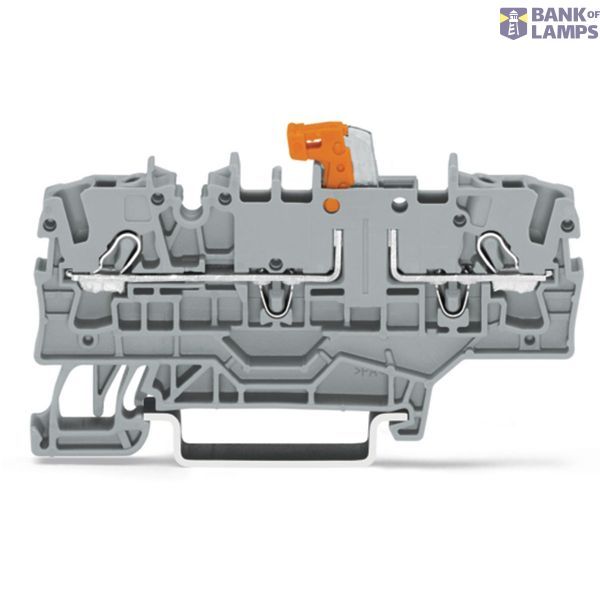

2-conductor disconnect/test terminal block with additional jumper posi

Name: 2-conductor disconnect/test terminal block with additional jumper posi
Brand: WAGO
Availability: PreOrder

Order only Minimal order quantity: 50 Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	2-conductor disconnect/test terminal block with additional jumper posi
Brand	WAGO
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 5080 00
ETIM	EC000902
Mounting method	DIN rail (top hat rail) 35 mm
Rated voltage	400 V
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of levels	1
Number of clamp positions per level	2
Internally connected stages	Yes
Connectable conductor cross section solid-core	0.75-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.75-2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.25-4 mm²
Connectable conductor cross section multi-wired	0.25-2.5 mm²
Rated current In	16 A

Packing level 1

4050821088981

Colour	Orange
Width	5.2 mm
Height	72.9 mm
Depth	32.9 mm
Operating temperature	105 °C
Inflammability class of insulation material according to with UL94	V0
Closing plate required	Yes
Type of slitting	None
Type of cross disconnection	None
With integrated test socket	No
Material insulation body	Thermoplastic

2-conductor disconnect/test terminal block with additional jumper position orange disconnect link for DIN-rail 35 x 15 and 35 x 7.5 2.5 mm² Push-
