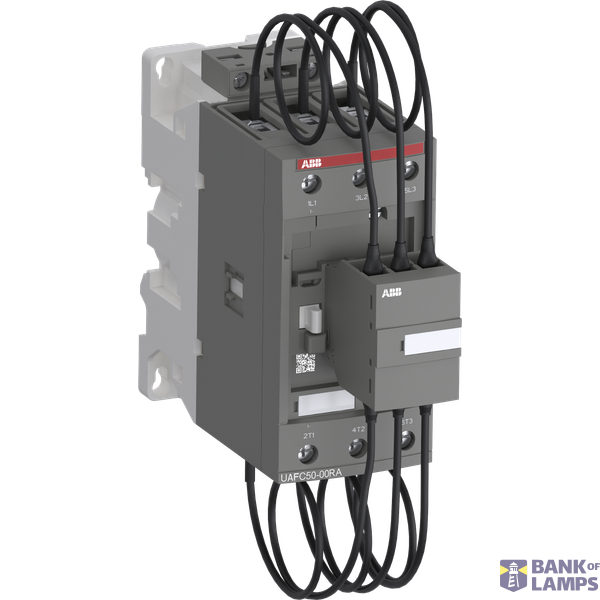

1SBL381024R8500 - ABB

Order only

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 3471525001549

MPN: 1SBL381024R8500

Package: 1

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	1SBL381024R8500 - ABB
Brand	ABB
Categories	Capacitor Contactors
Harmonized System Code	8536 4900 00
Rated control supply voltage at AC 50 Hz	380-400 V
Rated control supply voltage at AC 60 Hz	400-415 V
Rated control supply voltage at DC	- V
Voltage type for actuating	AC

Packing details

Packing level 1

3471525001549, 3471525001549

Other Technical data

Number of normally open contacts as main contact	3
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Type of electrical connection of main circuit	Screw connection
Rated blind power at 400 V, 50 Hz	50 kvar

Description

The UAFC50-30-00RA-85 is a 3 pole - 690 V IEC or 600 V UL capacitor switching contactor with 0 auxilieary contacts, controlling capacitors up to 50 KVR /400V AC-6b. The contactor can be used for installations in which the peak current up to 200 times nominal rms current,with their damping resistors and must be used without additional inductances. The contactor are AC - 380 ... 400 VLT 50Hz and 400 ... 415 VLT 60Hz controlled and can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
