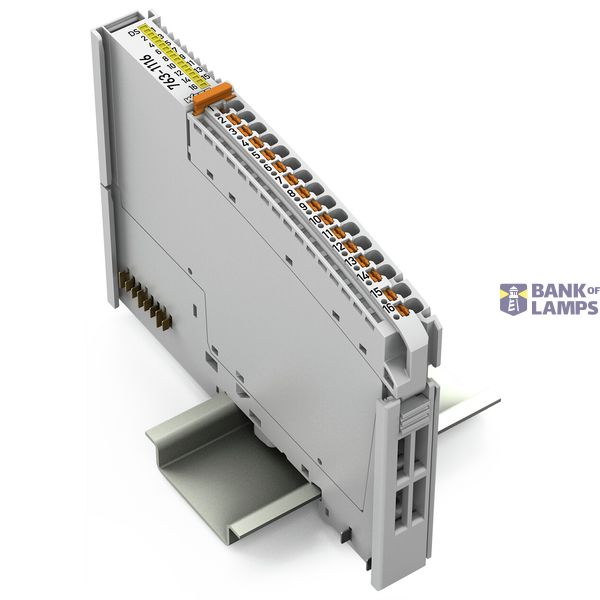

16-channel digital input 24 VDC
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | 16-channel digital input 24 VDC |
| Brand | WAGO |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| ETIM | EC001599 |
| Number of digital inputs | 16 |
| Number of digital outputs | 0 |
| Time delay at signal exchange | 3 ms |
| Voltage type of supply voltage | DC |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces USB | 0 |
| Type of voltage (input voltage) | DC |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for Modbus | No |
| Output current | 0 A |
| Type of digital output | Other |
| Type of electric connection | Spring clamp connection |
| Degree of protection (IP) | IP20 |
| Number of interfaces PROFINET | 0 |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for PROFINET IO | No |
| Supply voltage DC | 24 V |
| Permitted voltage at input | -3-30 V |
Packing details
| Packing level 1 | 4055143975650 |
Other Technical data
| Width | 12 mm |
| Height | 105 mm |
| Depth | 75 mm |
| Input current at signal 1 | 2.4 mA |
| Suitable for safety functions | No |
| Supporting protocol for LON | No |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | Yes |
| Short-circuit protection, outputs available | No |
| Rail mounting possible | Yes |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Fieldbus connection over separate bus coupler possible | Yes |
| System accessory | Yes |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Number of HW-interfaces Wireless | 0 |
| Front built-in possible | No |
| Rack-assembly possible | No |
| Wall mounting/direct mounting | No |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| IO link master | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Digital inputs configurable | No |
| Digital outputs configurable | No |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
Description
16-channel digital input 24 VDC
