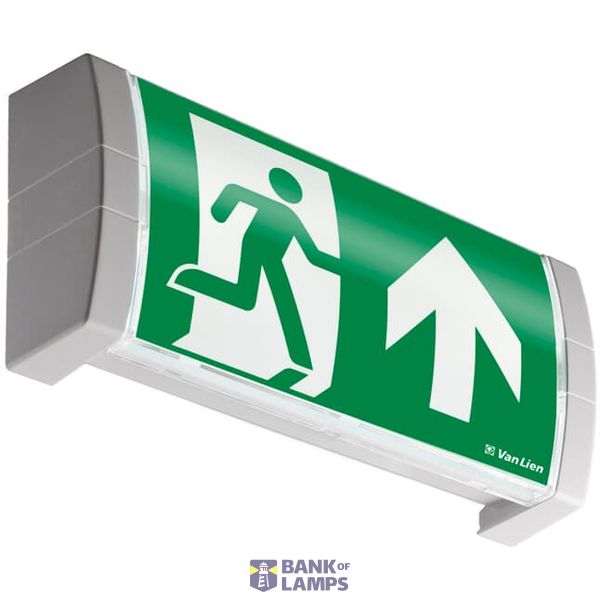

14062023/13 PRE-HF/DIM/LED/FLX
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | 14062023/13 PRE-HF/DIM/LED/FLX |
| Brand | ABB |
| ETIM | EC001957 |
| Width | 69 mm |
| Length | 293 mm |
| Height/depth | 80 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-230 V |
| Degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 8713812757797 |
Other Technical data
| Mounting method | Wall surface mounted / ceiling surface mounting |
| Protection class | II |
| Function | Escape route signage |
| Lamp holder | Other |
| Conductor cross section | 2.5 mm² |
| Connection type | Screw connection |
| Colour housing | Grey |
| Voltage type | DC |
| Power supply system | Central (central battery) |
| Type of control gear | LED operating device current-controlled |
| Suitable for labelling type | Other |
| Type of indicator | Single/double-sided |
| Number of poles | 8 |
| Housing material | Plastic |
| Wiring system | Continuous circuit/emergency circuit |
| Number of lighting heads | 0 |
| Material cover | Without cover |
| With light source | No |
| Suitable for number of lamps | 2 |
| With remote switch connection | No |
| Monitoring equipment | Safety module for monitoring (central feeded system) |
| With pictogram | No |
| Type of wiring | Suitable for through wiring |
| Rated ambient temperature according to IEC62722-2-1 | 5-25 °C |
| Light distributor | None |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
Downloads
Description
SER-EC/FLX
