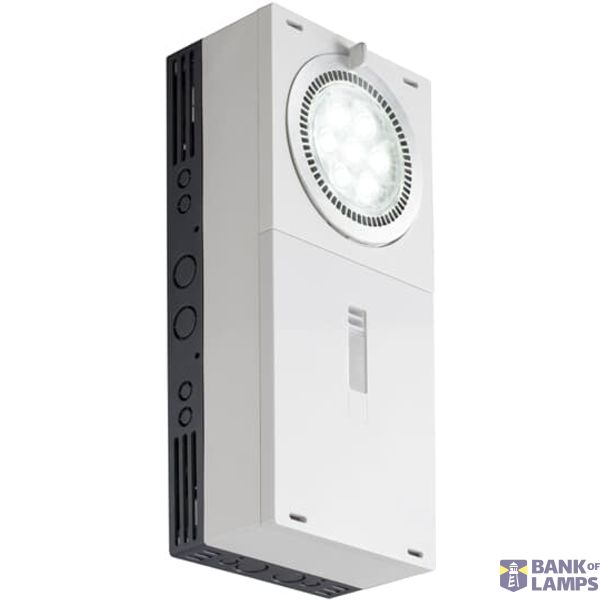

11170041/13 HIL-DLO LB400 1H CORRIDOR
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | 11170041/13 HIL-DLO LB400 1H CORRIDOR |
| Brand | ABB |
| ETIM | EC001957 |
| Width | 143 mm |
| Length | 326 mm |
| Height/depth | 109 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 230 V |
| Degree of protection (IP) | IP65 |
| Colour temperature | 6200 K |
Packing details
| Packing level 1 | 5415022433197 |
Other Technical data
| Mounting method | Wall surface mounted / ceiling surface mounting |
| Protection class | II |
| Function | Escape route lighting |
| Lamp holder | Other |
| Conductor cross section | 1.5 mm² |
| Connection type | Plug-in connection |
| Colour housing | White |
| Voltage type | AC/DC |
| Power supply system | Central (central battery) |
| Type of control gear | LED operating device current-controlled |
| Built-in width | 166 mm |
| Suitable for labelling type | Sticker |
| Type of indicator | Single-sided |
| Number of poles | 6 |
| Housing material | Plastic |
| Wiring system | Continuous circuit/emergency circuit |
| Number of lighting heads | 1 |
| Material cover | Plastic matt/satinized |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With remote switch connection | No |
| Monitoring equipment | Safety module for monitoring (central feeded system) |
| Type of wiring | Suitable for through wiring |
| Luminous flux in standby mode | 1000 lm |
| Rated ambient temperature according to IEC62722-2-1 | 0-40 °C |
| Light distributor | Focal lens |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Power factor | 0.9 |
Downloads
Description
HIL-CWO/LBS OPEN (HILED)
