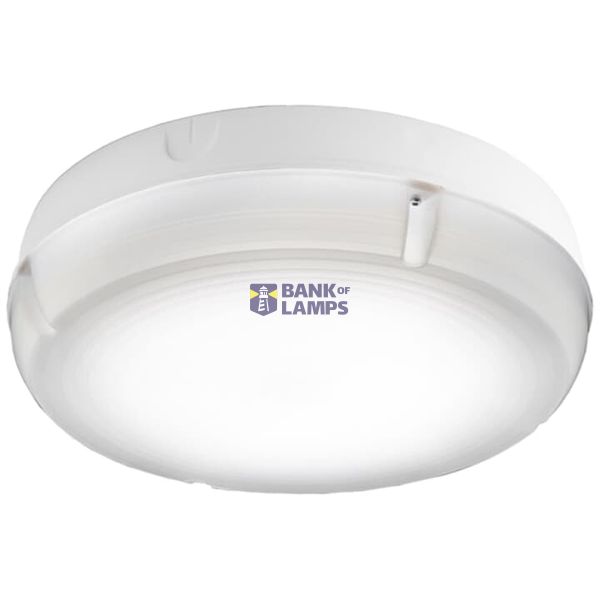

11100356 DECO LED20/FLX
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | 11100356 DECO LED20/FLX |
| Brand | ABB |
| Harmonized System Code | 9405 4900 00 |
| ETIM | EC001957 |
| Width | 350 mm |
| Length | 350 mm |
| Height/depth | 101 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 220-230 V |
| Degree of protection (IP) | IP65 |
| Colour temperature | 4000 K |
| Rated luminous flux according to IEC 62722-2-1 | 1830 lm |
Packing details
| Packing level 1 | 8713812772301 |
Other Technical data
| Mounting method | Wall surface mounted / ceiling surface mounting |
| Protection class | I |
| Outer diameter | 350 mm |
| Function | Escape route lighting |
| Lamp holder | Other |
| Connection type | Screw connection |
| Colour housing | White |
| Voltage type | AC/DC |
| Power supply system | Central (central battery) |
| Type of control gear | LED operating device current-controlled |
| Number of poles | 3 |
| Housing material | Plastic |
| Wiring system | Continuous circuit/emergency circuit |
| Number of lighting heads | 1 |
| Material cover | Plastic, opal |
| Battery quality | NiCd |
| With light source | Yes |
| Suitable for number of lamps | 2 |
| With remote switch connection | No |
| Monitoring equipment | None |
| With pictogram | No |
| Type of wiring | Suitable for through wiring |
| Luminous flux in standby mode | 1830 lm |
| Rated ambient temperature according to IEC62722-2-1 | 0-40 °C |
| Light distributor | Diffuser lens/optic/panel |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Power factor | 0.93 |
Downloads
Description
DECO LED20/HF
