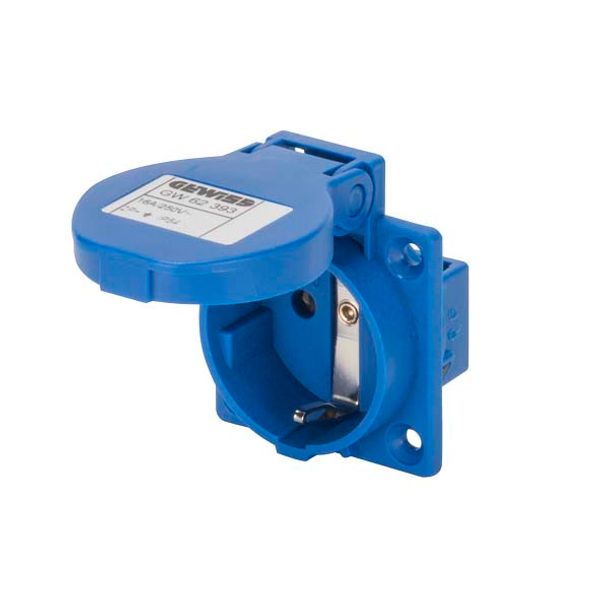

10° ANGLED FLUSH-MOUNTING SOCKET-OUTLET - GERMAN STANDARD - 2P+E 16A 230V 50/60HZ - 50X50 - BLUE - SCREW WIRING
Order only
Price (excl. VAT):
2,10 €
EAN: 8011564833579
MPN: GW62393
Package: 1
Box: 20
Pallet: 2200
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | 10° ANGLED FLUSH-MOUNTING SOCKET-OUTLET - GERMAN STANDARD - 2P+E 16A 230V 50/60HZ - 50X50 - BLUE - SCREW WIRING |
| Brand | GEWISS |
| Categories |
Sockets
|
| Harmonized System Code | 8536 6990 00 |
| Nominal current | 16 A |
| Nominal voltage | 230 V |
| Colour | Blue |
| Model | Protective contact (type F) |
| Halogen free | No |
| RAL-number | 7035 |
| With hinged lid | Yes |
| Material quality | Thermoplastic |
| Number of poles | 2 |
| Material | Plastic |
| Connection system | Screwed terminal |
| Angle of plug | Straight |
| Flange size | Other |
| Degree of protection (IP) | IP54 |
| For heavy conditions according to VDE | No |
Packing details
| Packing level 1 | 8011564833579 |
| Packing level 2 | 8011564833579 |
| Packing level 3 | 8011564833579 |
Description
IEC 309 HP range Plugs and socket-outlets IEC 309 Standards - The IEC 309 HP system comprises plugs and socket-outlets from 16 to 125A in two different versions – straight mobile and 10° flush-mounting – available in protected versions with IP44/IP54 degree of protection and watertight versions with IP degree of protection of up to IP66/IP67/IP68/IP69 (the first and only on the electro-technical scene to have this). The introduction of all the clock references for the earthing contact completes the range for specific applications and installations. The 16-32A versions require screw or quick spring wiring, while the 63-125 A versions employ branching terminal connection technology.
