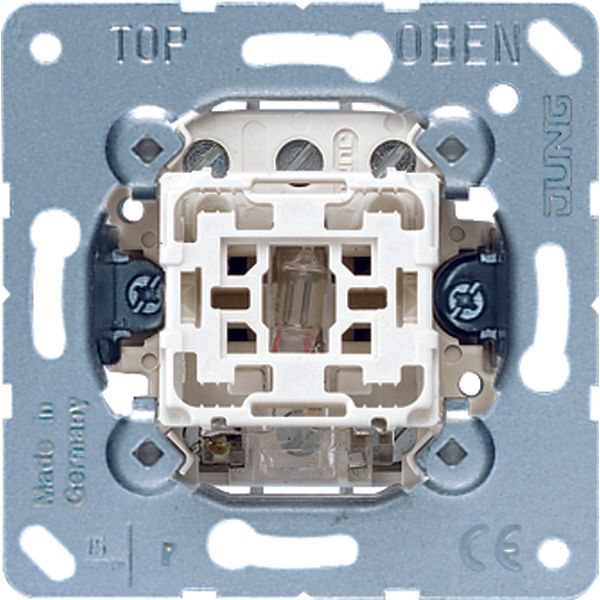

1-gang switch insert 3-pole, 1-way 503KOU
Order only
Price (excl. VAT):
42,38 €
EAN: 4011377260009
MPN: 503KOU
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | 1-gang switch insert 3-pole, 1-way 503KOU |
| Brand | Jung |
| Categories |
Switches
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| Nominal voltage | 400 V |
| Mounting method | Flush mounted (plaster) |
| Assembly arrangement | Basic element |
| Method of operation | Rocker/button |
| Rated current | 0 A |
| Type of fastening | Mounting with claw and screw |
| Wiring system | 3-pole switch |
| Suitable for degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 4011377260009 |
| Packing level 2 | 4011377260009 |
Other Technical data
| Halogen free | Yes |
| With mounting plate | No |
| Connection type | Screwed terminal |
| Illumination | Yes |
| Built-in depth | 32 mm |
| Feedback-signal contact | No |
| Type of lighting | Glow lamp |
| Number of rockers | 1 |
| RAL-number (similar) | 0 |
| Switching current for fluorescent lamps | 16 AX |
| Push button switch | No |
| Washing machine switch | No |
| Device width | 71 mm |
| Device height | 71 mm |
| Device depth | 0 mm |
| Label space/information surface | No |
| Function lighting | Control and orientation |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Downloads
Description
A versatile switch insert for controlling electrical circuits, suitable for use in flush-mounted systems.Enables switching of fluorescent lamps with glow lamp lighting and orientation functionality. Rated current:0 A;Built-in depth:32 mm;Halogen-free construction;Mounting method:Flush mounted (plaster);Fastening type:Mounting with claw and screw;Device dimensions (WxHxD):71 mm x 71 mm x 0 mm;Degree of protection (IP):IP20; Nominal voltage:400 V;Method of operation:Rocker/button; Connection type:Screwed terminal;Number of rockers:1; With illumination function using glow lamp technology;;Wiring system specified as a 3-pole switch;Switching current capacity for fluorescent lamps up to 16 AX;;Function lighting serves both control and orientation purposes
