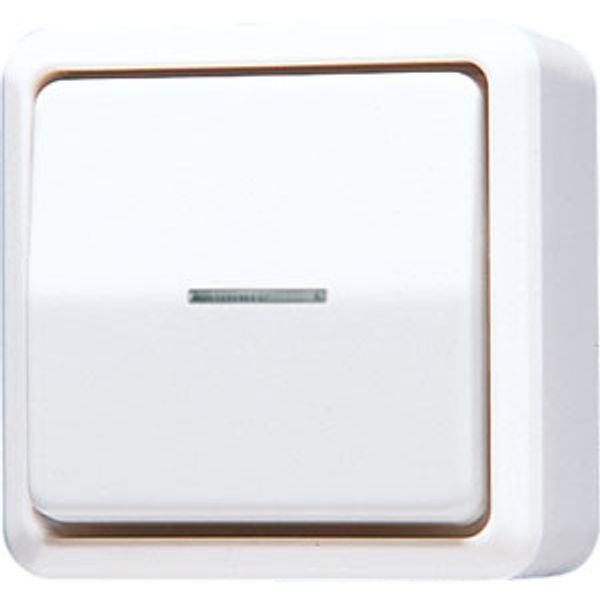

1-gang switch 10 AX / 250 V ~ with ind. 606KO5AWW
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
27,25 €
EAN: 4011377049116
MPN: 606KO5AWW
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | 1-gang switch 10 AX / 250 V ~ with ind. 606KO5AWW |
| Brand | Jung |
| Categories |
Switches
|
| Country of origin | DE |
| Harmonized System Code | 8536 5080 00 |
| Nominal voltage | 250 V |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Basic element with complete housing |
| Method of operation | Rocker/button |
| Rated current | 0 A |
| Type of fastening | Screw mounting |
| Wiring system | Two-way switch |
Packing details
| Packing level 1 | 4011377049116 |
| Packing level 2 | 4011377049116 |
Other Technical data
| Colour | White |
| Halogen free | Yes |
| With mounting plate | No |
| Connection type | Push-in clamp |
| Illumination | Yes |
| Surface protection | Other |
| Built-in depth | 0 mm |
| Feedback-signal contact | No |
| Material quality | Duroplast |
| Type of lighting | Glow lamp |
| Material | Plastic |
| Number of rockers | 1 |
| RAL-number (similar) | 9016 |
| Switching current for fluorescent lamps | 10 AX |
| Push button switch | No |
| Washing machine switch | No |
| Surface finishing | Glossy |
| Device width | 61 mm |
| Device height | 61 mm |
| Device depth | 40 mm |
| Label space/information surface | No |
| Function lighting | Control and orientation |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Downloads
Description
Single-gang switch used to control electrical circuits with integrated illumination for indication or orientation.Operates at a nominal voltage of 250 V and supports fluorescent loads up to 10 AX. Surface mounted configuration, plaster application.Built-in depth 0 mm.Device dimensions:width 61 mm, height 61 mm, depth 40 mm.Material composition duroplast plastic, halogen-free, glossy finish, RAL color approximation to shade 9016 (white).Includes glow lamp lighting type function;rocker/button operation method with indication lighting feature for control/orientation purposes only—non-feedback signal contact.Push-in clamp connection system applied without mounting plate support;designated as basic element plus full housing assembly component arrangement.Utilizes screw fastening method specifically designed for two-way wiring applications with no label space allocated
