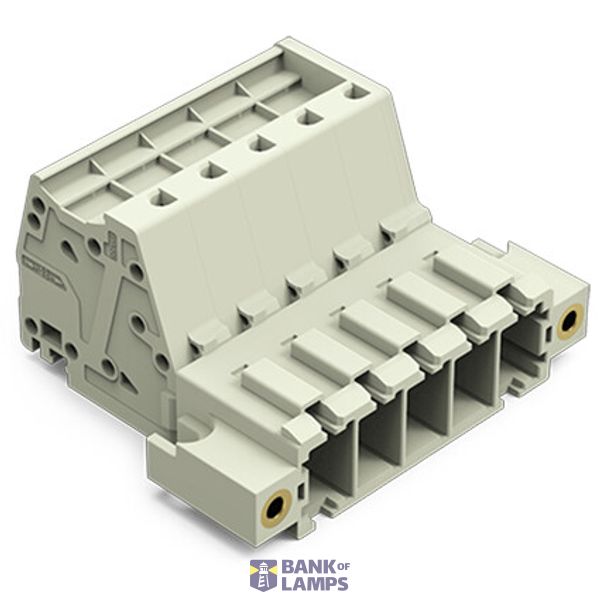

1-conductor male connector Push-in CAGE CLAMP® 10 mm² light gray
Order only
Minimal order quantity: 24
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | 1-conductor male connector Push-in CAGE CLAMP® 10 mm² light gray |
| Brand | WAGO |
| Country of origin* | PL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC001284 |
| Rated voltage | 1000 V |
| Drill hole distance centrically | 0 mm |
| Rated current In | 41 A |
| Explosion-tested version 'Ex e' | No |
Packing details
| Packing level 1 | 4055144044157 |
Other Technical data
| Mounting method | Other |
| Colour | Other |
| Width | 7.62 mm |
| Height | 42.5 mm |
| Depth | 25 mm |
| Number of poles | 5 |
| Operating temperature | -60-105 °C |
| Number of clamp positions per pole | 1 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Closing plate required | No |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Transparent | No |
| Connectable conductor cross section solid-core | 0.5-10 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.5-6 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.5-10 mm² |
| Material insulation body | Thermoplastic |
Description
1-conductor male connector Push-in CAGE CLAMP® 10 mm² Pin spacing 7.62 mm 5-pole 100% protected against mismating Threaded flange 10,00 mm² li
