Technical Information
| Item condition | New |
| Manufacture name | 05905339225993-05905339225993 |
| Brand | Kanlux |
| ETIM | EC002892 |
| Width | 80 mm |
| Colour housing | Grey |
| Colour rendering index CRI | 80-89 |
| Length | 1175 mm |
| Height/depth | 70 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP65 |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 4000 K |
| Max. system power | 38 W |
| Rated luminous flux according to IEC 62722-2-1 | 5000 lm |
| Luminaire efficacy | 132 lm/W |
Packing details
| Packing level 1 | 5905339225993 |
Other Technical data
| Protection class | II |
| Conductor cross section | 1.5 mm² |
| Connection type | Screwed terminal |
| Voltage type | AC |
| Housing material | Plastic |
| With light source | Yes |
| Suitable for surface mounting | Yes |
| Colour of light | White |
| Type of wiring | Suitable for through wiring |
| Rated ambient temperature according to IEC62722-2-1 | -20-40 °C |
| No dim function | Yes |
| Suitable for ceiling mounting | Yes |
| Power factor | 0.95 |
Downloads
Description

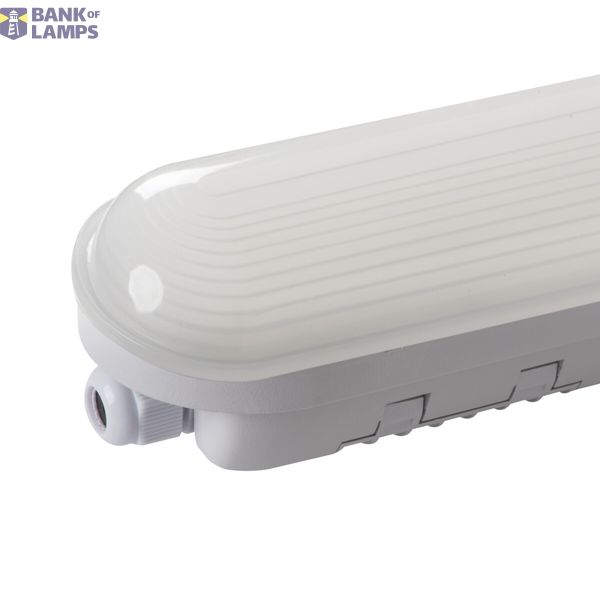

Kanlux MAH LED HI are hermetic luminaires designed for demanding users. They are characterised by exceptional luminous efficacy reaching 150 lm/W. Kanlux MAH LED HI luminaires are easy and quick to mount and can be connected in lines, enabling the illumination of large spaces. In Kanlux MAH LED HI luminaires, we used a grooved lampshade, which increases the luminous flux.
